RAM^® Brake/Clutch Reservoir Mount for Garmin nuvi 1690
Part #: RAM-B-174-GA37U UPC: 793442927775 Patented & Pats. Pend.

Product Information

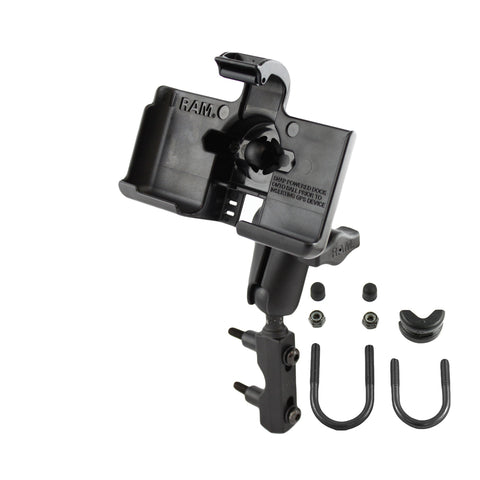

Overview	The RAM-B-174-GA37U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and form fitting cradle for Garmin nuvi 1690.

Specifications
hardware included	Assembly Hardware (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.51 lb
