RAM® Brake/Clutch Reservoir Mount for Garmin nuvi 1440, 1450 & 1490T
Overview

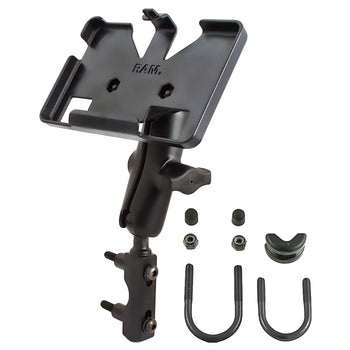

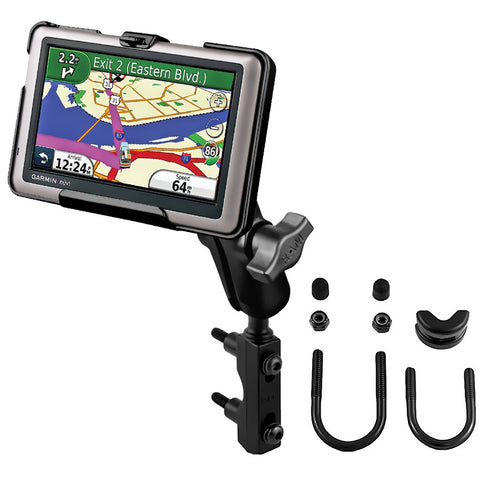

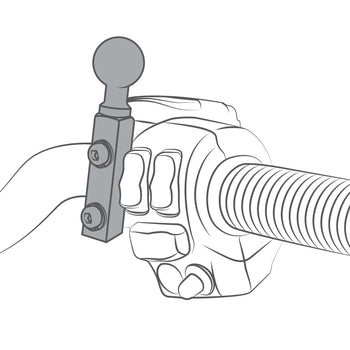

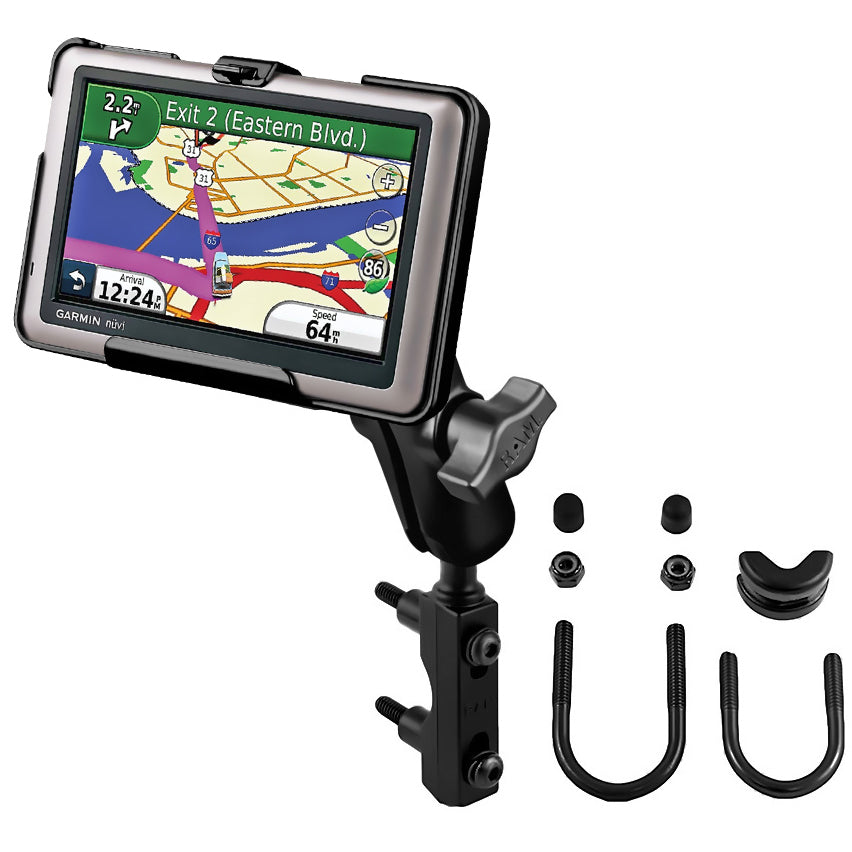

The RAM-B-174-GA35U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond base adapter and custom form-fitted cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the cradle to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
hardware included:
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range:
.5" - 1.25" diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.51 lb
