RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
$82.99
Brake/Clutch Reservoir Mount

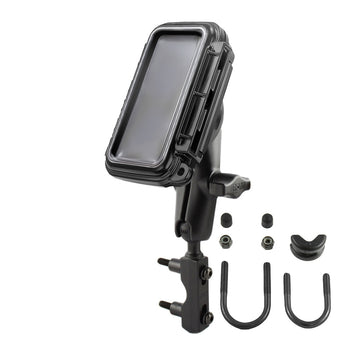

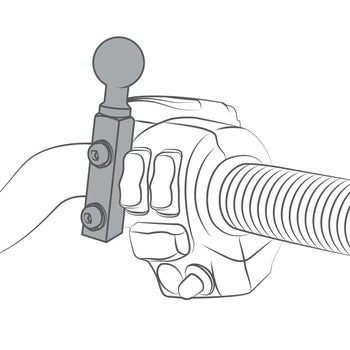

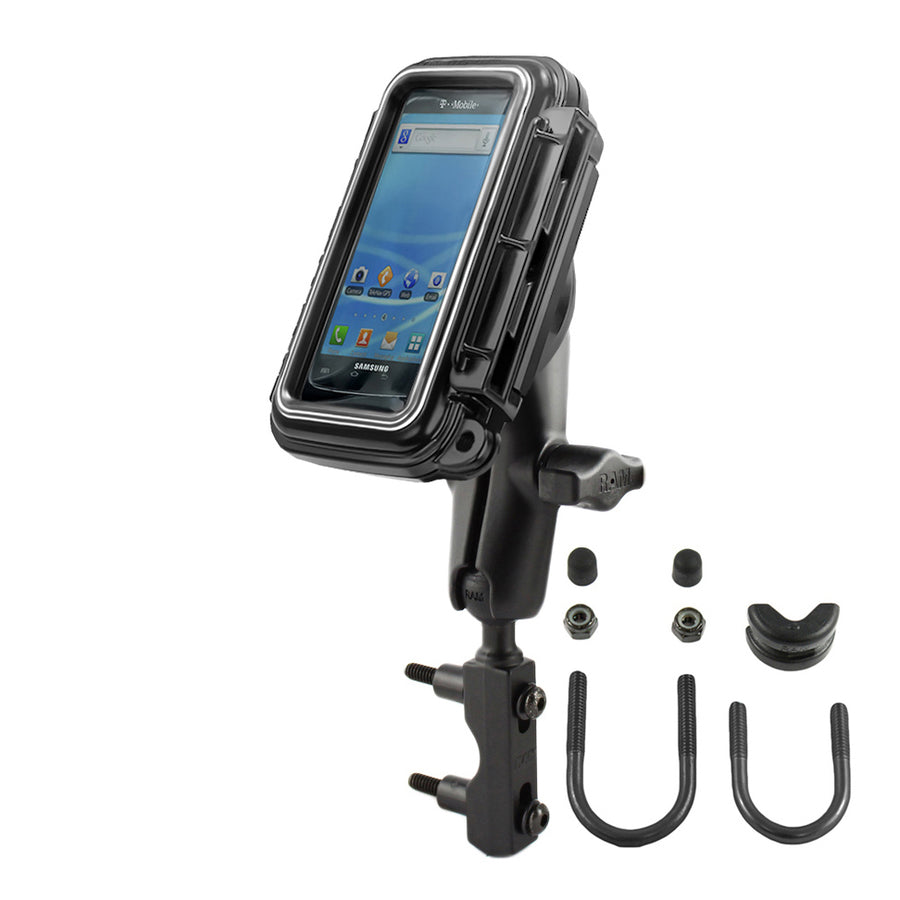

The RAM-B-174-AQ3U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, 2.5" diameter round bases with the universal AMPS hole pattern and sealed enclosed small size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AQUA BOX® case provide sealed enclosure and protection for your handheld device. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
Overview
The RAM-B-174-AQ3U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, 2.5" diameter round bases with the universal AMPS hole pattern and sealed enclosed small size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AQUA BOX® case provide sealed enclosure and protection for your handheld device. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
hardware included
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
internal dimensions
Width: 2.38"
Height: 4.63"
Depth: 1.13"
clamp range
.5" - 1.25" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.51 lb
