Overview

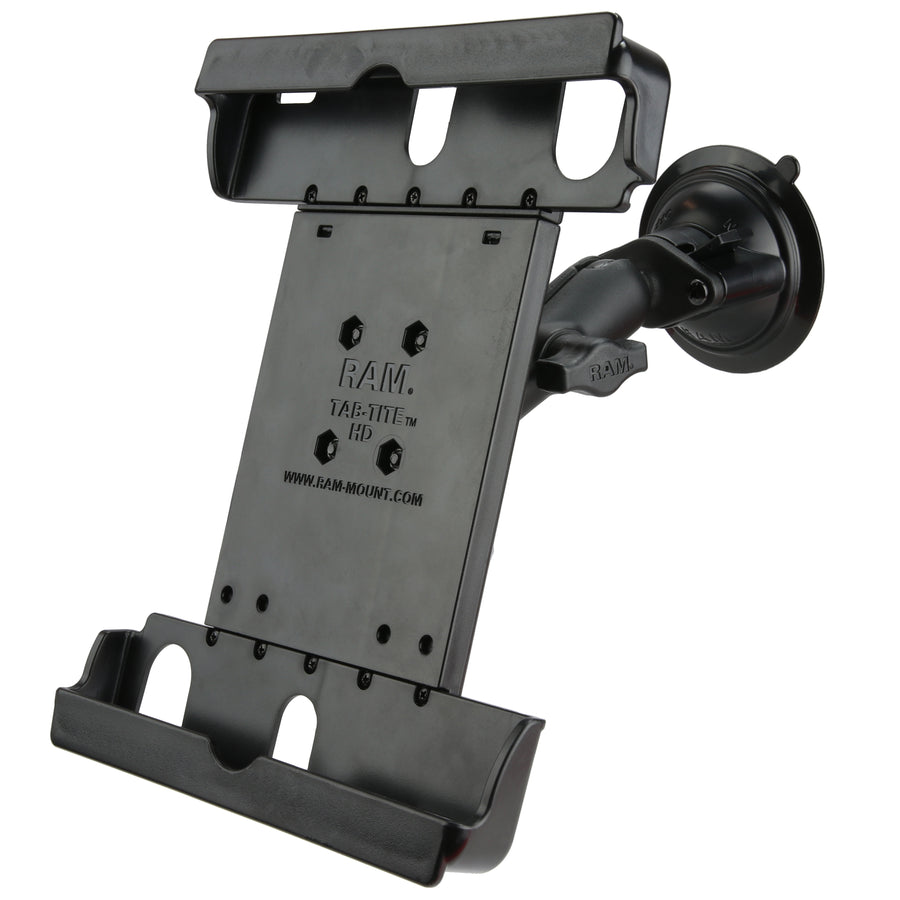

Ideal for aircraft windshields, the RAM® Tab-Tite™ holder for 9"-10.5" tablets with a case consists of a 3.3" diameter RAM® Twist-Lock™ suction cup base and medium length double socket arm. The mount is designed with a RAM® 1" diameter B size patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Features
- Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Includes RAM® Twist-Lock™ suction cup base for mounting to windshields and other nonporous surfaces as well as a B size medium socket arm
- Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
hardware included:
Assembly Hardware
holder dimensions:
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
suction size:
3.3" Diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.4 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
Instructions
Documents
Questions & Answers
Have a Question?
-
Do you have the assembly instructions for this?
If you hit the Resources TAB. You will see all the instruction to this mount.
