Patented
RAM® Tab-Tite with RAM® Twist-Lock Suction Cup for iPad mini 1-4
Part#: RAM-B-166-TAB12U
UPC: 793442943645
Ball Icon B Size
Arm Icon Medium Arm
$79.99

Overview

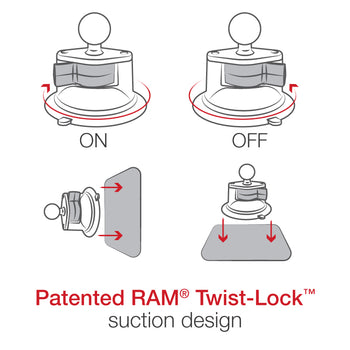

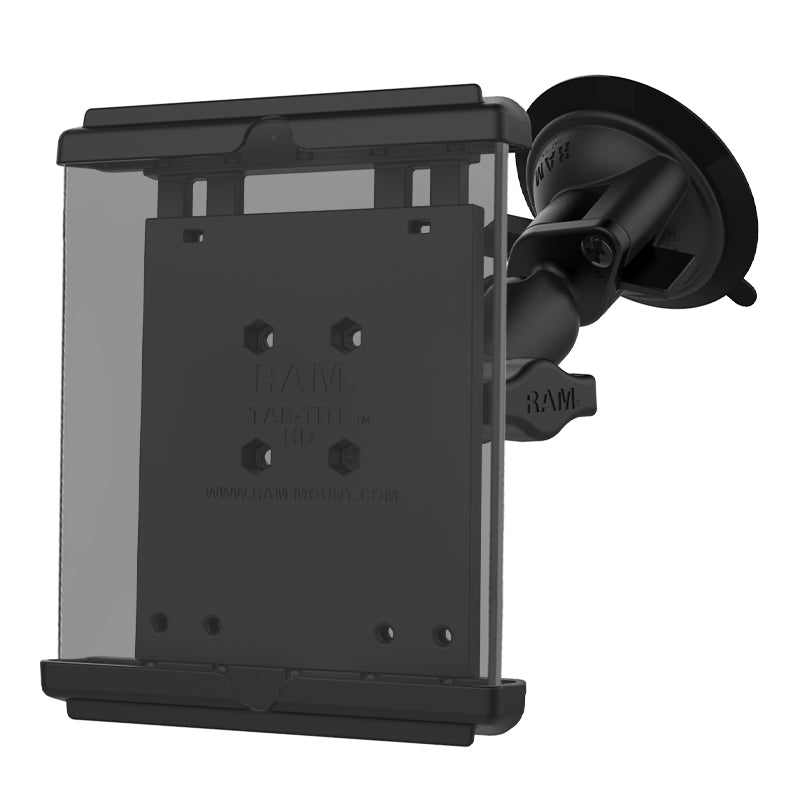

The RAM-B-166-TAB12U consists of a 3.3" diameter suction cup twist lock base, double socket arm, round base plate and Tab-Tite universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is includes a patented RAM B size 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Included in this kit are custom support cups for the iPad mini 1,2,3,4 WITH Light Duty case. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"

suction size:

3.3" Diameter

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.18 lb

Additional Information:

This product is not compatible with the iPad mini 1-3 with LifeProof case.

Questions & Answers

Have a Question?

Ask a Question
  • Does it work on the iPad mini 7 ?

    You will want to compare your Height, Width, and depth of your iPad mini 7 (in the case if there is one) to the holder dimensions on this product page.

  • Will this work with iPad mini 4 with Otter Box defender case?

    No, the TAB-B-166-TAB29U will best accommodate the dimensions of an iPad mini 4 in an Otterbox Defender case.
