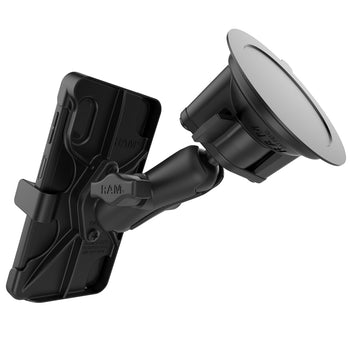

RAM® EZ-Roll'r™ Suction Cup Mount for Samsung XCover Pro
Part #: RAM-B-166-SAM59U UPC: 793442011078 Patented & Pats. Pend. Features Form-fit cradle designed specifically for the Samsung Galaxy XCover Pro Includes a diamond ball base, medium length RAM® double socket arm, and RAM® Twist-Lock™ suction cup; ball and socket technology allows for near-infinite adjustability Cradle made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty*

Part #: RAM-B-166-SAM59U UPC: 793442011078 Patented & Pats. Pend.

Features

Form-fit cradle designed specifically for the Samsung Galaxy XCover Pro

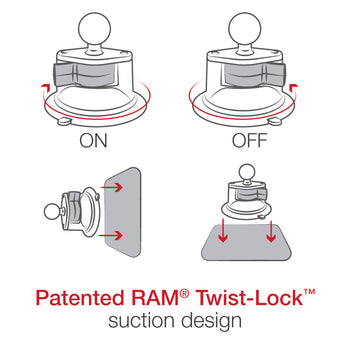

Includes a diamond ball base, medium length RAM® double socket arm, and RAM® Twist-Lock™ suction cup; ball and socket technology allows for near-infinite adjustability
Cradle made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

RAM® EZ-Roll'r™ Suction Cup Mount for Samsung XCover Pro

Product Information
Overview	The RAM® EZ-Roll’r™ cradle for the Samsung XCover Pro secures your device in a form-fit holder while keeping the entire screen visible. Simply slide your XCover Pro into the cradle and roll the side clip over the device to secure into place. All buttons, cameras, and charging port remain exposed and accessible. Ideal for windshield mounting, this kit also includes a diamond ball base, medium length RAM® double socket arm, and a RAM® Twist-Lock™ suction cup.

Product Information

Overview

The RAM® EZ-Roll’r™ cradle for the Samsung XCover Pro secures your device in a form-fit holder while keeping the entire screen visible. Simply slide your XCover Pro into the cradle and roll the side clip over the device to secure into place. All buttons, cameras, and charging port remain exposed and accessible. Ideal for windshield mounting, this kit also includes a diamond ball base, medium length RAM® double socket arm, and a RAM® Twist-Lock™ suction cup.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.8 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® EZ-Roll'r™ Suction Cup Mount for Samsung XCover Pro

Part#: RAM-B-166-SAM59U

UPC: 793442011078

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$70.99

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Form-fit cradle designed specifically for the Samsung Galaxy XCover Pro
Includes a diamond ball base, medium length RAM® double socket arm, and RAM® Twist-Lock™ suction cup; ball and socket technology allows for near-infinite adjustability
Cradle made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

hardware included:

Assembly Hardware

suction size:

3.3" Diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.8 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
