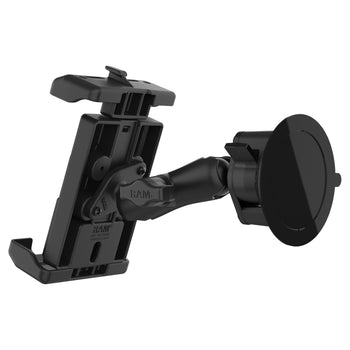

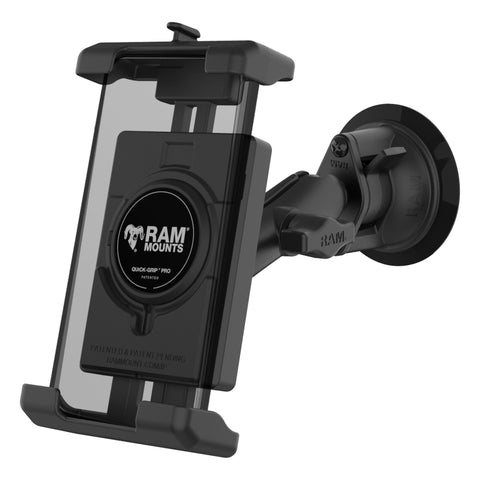

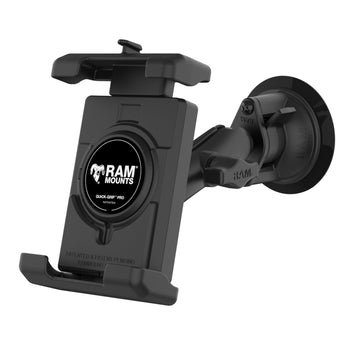

RAM® Quick-Grip™ Pro XL Phone Mount with Twist-Lock™ Suction Cup

Part #: RAM-B-166-PD7U UPC: 793442026751 Patented & Pats. Pend.

Features

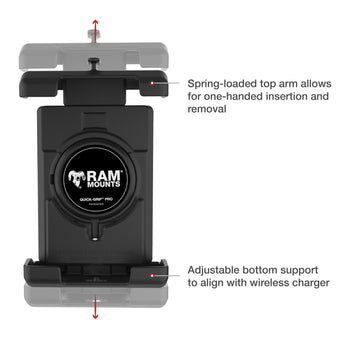

Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

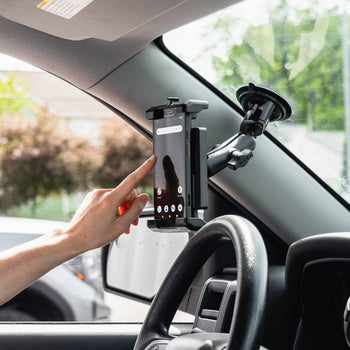

Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

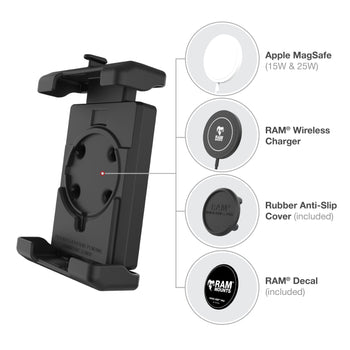

Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
Comes with optional device tether for open cockpit environments
Backed by a lifetime warranty

RAM® Quick-Grip™ Pro XL Phone Mount with Twist-Lock™ Suction Cup

Product Information

Overview

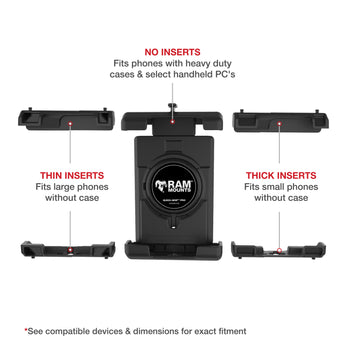

The RAM® Quick-Grip™ Pro XL Phone Mount with Twist-Lock™ Suction Cup - Medium (RAM-B-166-PD7U) is the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a 3.3" diameter RAM® Twist-Lock™ suction cup base that easily installs onto any non-porous surfaces. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Specifications

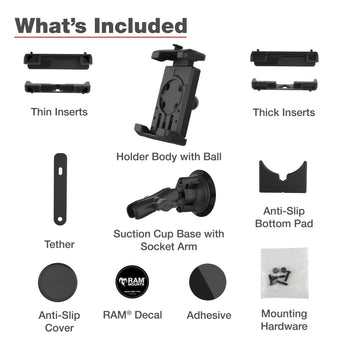

hardware included	Assembly Hardware
holder dimensions	Height Range: 5.375" - 7" Width Range: 2.75" - 3.5" Max Depth: .75"
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.43 lb

Patented & Pats. Pend.

RAM® Quick-Grip™ Pro XL Phone Mount with Twist-Lock™ Suction Cup

Name: RAM® Quick-Grip™ Pro XL Phone Mount with Twist-Lock™ Suction Cup
Brand: RAM Mounts
SKU: RAM-B-166-PD7U
Price: 135.49 USD
Availability: InStock

Part#: RAM-B-166-PD7U

UPC: 793442026751

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
