RAM® Quick-Grip™ Pro Suction Cup Mount with Qi2 15W Wireless Charger

Part #: RAM-B-166-PD5-W2MU UPC: 793442026591 Patented & Pats. Pend.

Features

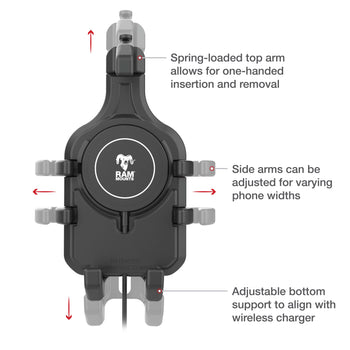

Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

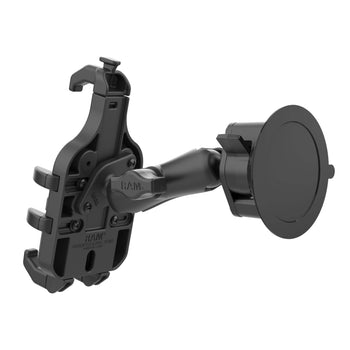

Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
Made of high-strength composite for durability and reliability in the most demanding environments
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

RAM® Quick-Grip™ Pro Suction Cup Mount with Qi2 15W Wireless Charger

Product Information

Overview

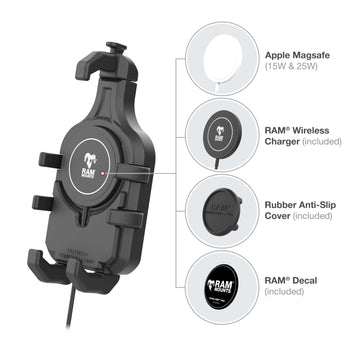

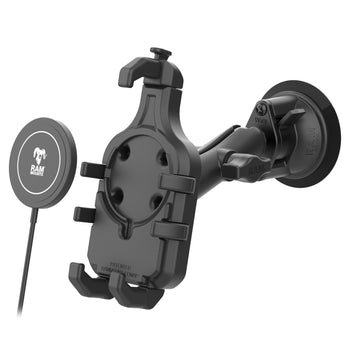

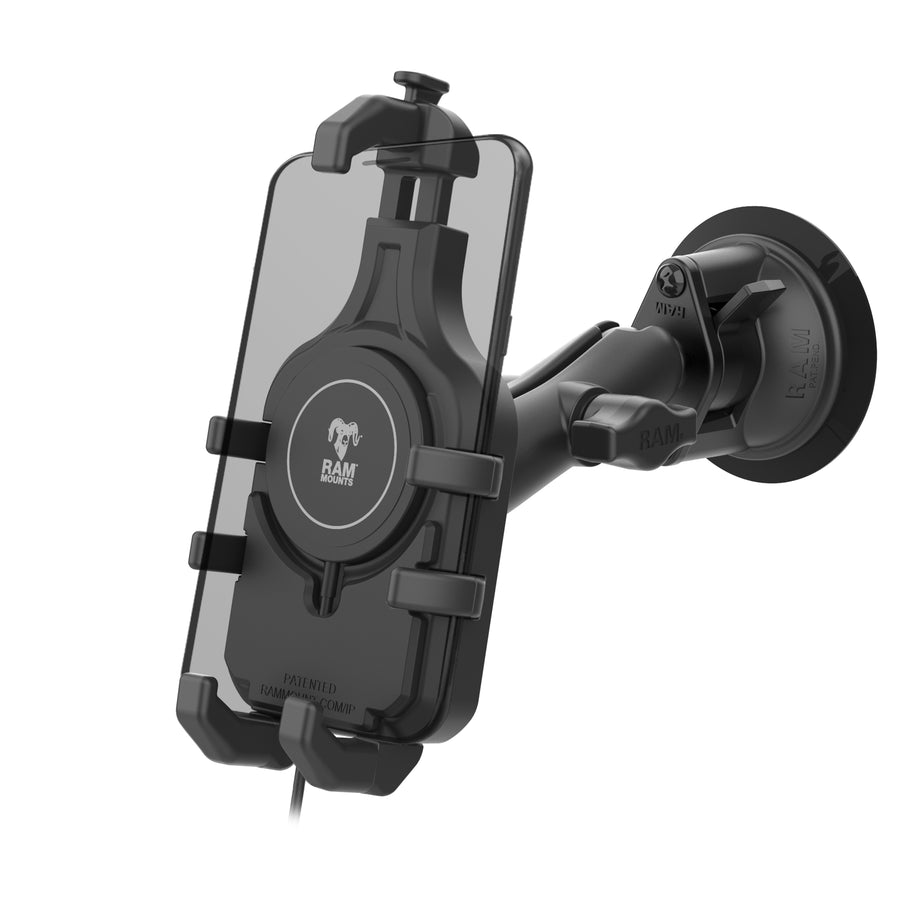

The RAM® Quick-Grip™ Pro Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD5-W2MU) is ideal for vehicle windshields and features the next evolution of the RAM® Quick-Grip™ series. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes a 3.3" diameter RAM® Twist-Lock™ suction cup base that easily installs onto any non-porous surface. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 5.5" - 7.75" Width Range: 2.625" - 3.75" Max Depth: .67"
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
power specifications	Operating Frequency: 360KHZ Stand-by Consumption ~ 0.008A / 8mA @5VDC 80% Wireless Power Transfer Efficiency or Greater Supports USB 2.0 BC1.2 Power Supply (5V) Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage	USB 5V @ 3A QC2.0 9V @ 2.22A USB PD 2.0 5-15V @ 2A
power output	BPP - 5W EPP - 7.5W MPP - 15W
output connector	USB Type-C Male with USB-A Adapter
output cable length	1 Meter
operating temperature	0°C to +40°C
storage temperature	-20°C to +80°C
regulatory	Over Current Protection Short Cirtcuit Protection Over Temperature Protection RoHS Compliance WEEE Compliance
certifications	IP67 SAE J1455 FCC Certification CE Certification E-Mark Certification RCM Certification
Additional Information	Top hook may block front facing camera and facial recognition on select phones. The included wireless charger will support up to 8mm charging distance between puck and device.

Patented & Pats. Pend.

RAM® Quick-Grip™ Pro Suction Cup Mount with Qi2 15W Wireless Charger

Name: RAM® Quick-Grip™ Pro Suction Cup Mount with Qi2 15W Wireless Charger
Brand: RAM Mounts
SKU: RAM-B-166-PD5-W2MU
Price: 197.99 USD
Availability: OutOfStock

Part#: RAM-B-166-PD5-W2MU

UPC: 793442026591

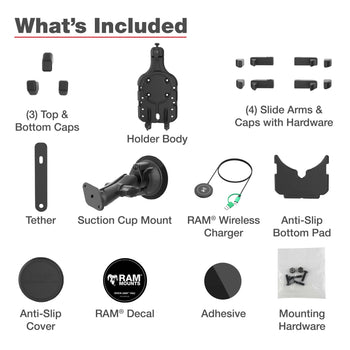

Kit Components

RAM-HOL-PD5U:RAM-HOL-PD5U_1:RAM Quick-Grip™ Pro Phone Holder

RAM® Quick-Grip™ Pro Phone Holder RAM-HOL-PD5U $89.99

RAM-B-166U:RAM-B-166U_1:RAM Twist-Lock™ Suction Cup Double Ball Mount - Medium

RAM® Twist-Lock™ Suction Cup Double Ball Mount - Medium RAM-B-166U $48.49

RAM-GDS-CHARGE-W2M:RAM-GDS-CHARGE-W2M_1:RAM Qi2 15W Wireless Charger

RAM® Qi2 15W Wireless Charger RAM-GDS-CHARGE-W2M $54.99

$197.99

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
Made of high-strength composite for durability and reliability in the most demanding environments
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"

suction size:

3.3" Diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

power specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

input voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

power output:

BPP - 5W
EPP - 7.5W
MPP - 15W

output connector:

USB Type-C Male with USB-A Adapter

output cable length:

1 Meter

operating temperature:

0°C to +40°C

storage temperature:

-20°C to +80°C

regulatory:

Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Additional Information:

Top hook may block front facing camera and facial recognition on select phones.

The included wireless charger will support up to 8mm charging distance between puck and device.
