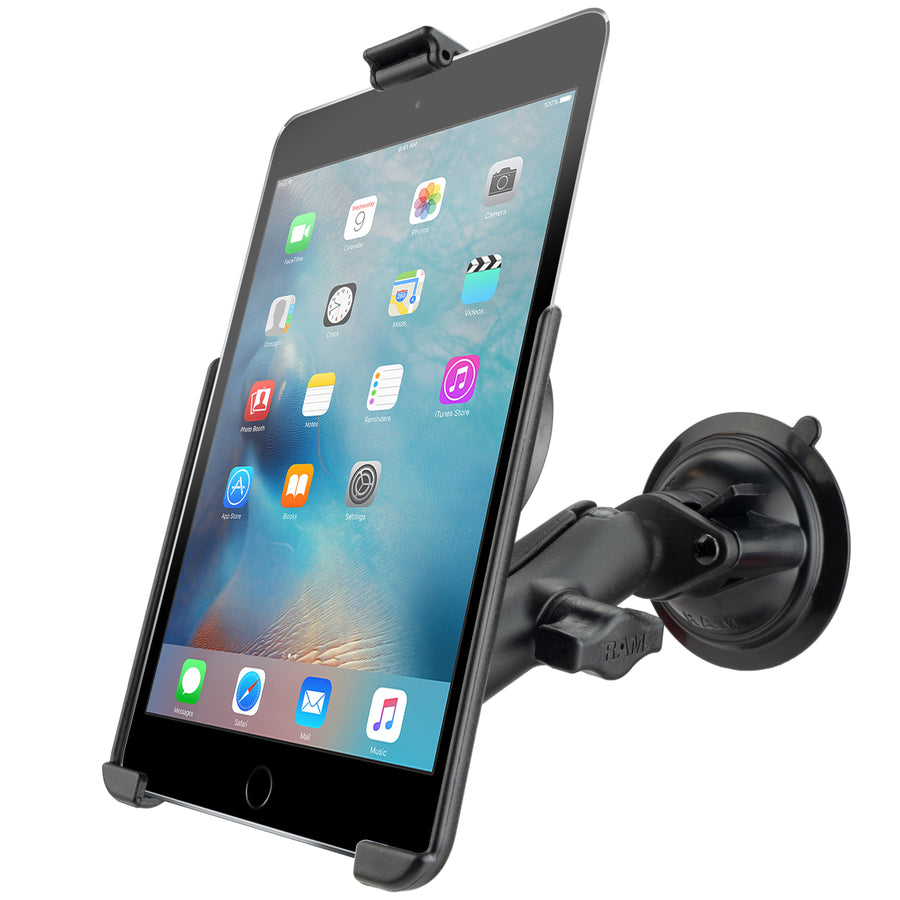

RAM^® Twist-Lock^™ Suction Cup Mount for Apple iPad mini 4 & 5
Part #: RAM-B-166-AP20U UPC: 793442013669 Patented & Pats. Pend. Features RAM^® EZ-Roll'r^™ cradle designed specifically for a caseless Apple iPad mini 4 and iPad mini 5 Includes RAM^® Twist-Lock^™ suction cup base for mounting to windshields and other nonporous surfaces as well as a B size medium socket arm Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty*

RAM^® Twist-Lock^™ Suction Cup Mount for Apple iPad mini 4 & 5

Part #: RAM-B-166-AP20U UPC: 793442013669 Patented & Pats. Pend.

Features

RAM^® EZ-Roll'r^™ cradle designed specifically for a caseless Apple iPad mini 4 and iPad mini 5
Includes RAM^® Twist-Lock^™ suction cup base for mounting to windshields and other nonporous surfaces as well as a B size medium socket arm
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

RAM<sup>®</sup> Twist-Lock<sup>™</sup> Suction Cup Mount for Apple iPad mini 4 & 5

Product Information
Overview	Ideal for aircraft windshields, the RAM^® EZ-Roll'r^™ cradle is designed specifically for a caseless Apple iPad mini 4 and iPad mini 5 consisting of a 3.3" diameter RAM^® Twist-Lock^™ suction cup base and medium length double socket arm. The mount is designed with a RAM^® 1" diameter B size patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

Ideal for aircraft windshields, the RAM^® EZ-Roll'r^™ cradle is designed specifically for a caseless Apple iPad mini 4 and iPad mini 5 consisting of a 3.3" diameter RAM^® Twist-Lock^™ suction cup base and medium length double socket arm. The mount is designed with a RAM^® 1" diameter B size patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.87 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® Twist-Lock^™ Suction Cup Mount for Apple iPad mini 4 & 5

Part#: RAM-B-166-AP20U

UPC: 793442013669

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$65.49

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

RAM^® EZ-Roll'r^™ cradle designed specifically for a caseless Apple iPad mini 4 and iPad mini 5
Includes RAM^® Twist-Lock^™ suction cup base for mounting to windshields and other nonporous surfaces as well as a B size medium socket arm
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

hardware included:

Assembly Hardware

suction size:

3.3" Diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.87 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.
