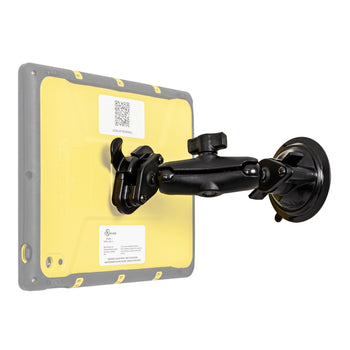

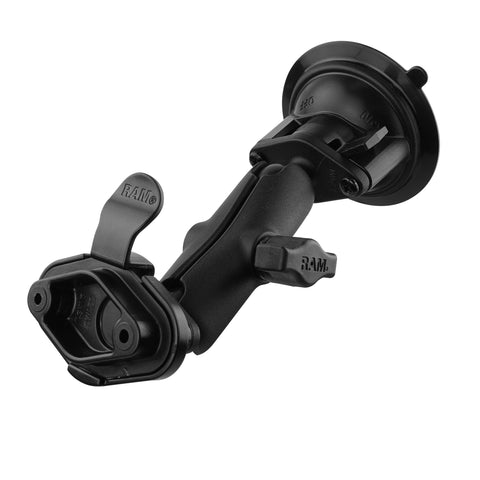

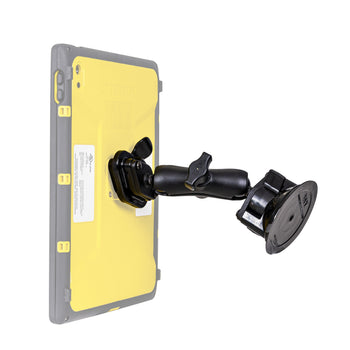

RAM® Twist-Lock™ Suction Cup Mount with EZY-Mount™ Quick Release Adapter
Part #: RAM-B-166-326U UPC: 793442016936 Patented Features RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces Includes B-size medium length socket arm and RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series Quick release adapter with release tab for easy docking and removal of device wrapped in an OtterBox Hardline Series case Backed by a lifetime warranty*

RAM® Twist-Lock™ Suction Cup Mount with EZY-Mount™ Quick Release Adapter

Part #: RAM-B-166-326U UPC: 793442016936 Patented

Features

RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Includes B-size medium length socket arm and RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series
Quick release adapter with release tab for easy docking and removal of device wrapped in an OtterBox Hardline Series case
Backed by a lifetime warranty*

RAM® Twist-Lock™ Suction Cup Mount with EZY-Mount™ Quick Release Adapter

Product Information
Overview	This single suction cup mount (RAM-B-166-326U) was designed in collaboration with OtterBox Hardline Series for industrial applications. This kit Includes B-size RAM® Twist-Lock™ suction cup base, medium length socket arm, and a RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series. With the quick release tab, simply push the tab to dismount the tablet without having to adjust with the mount itself. The RAM-B-224-1U suction cup base consists of a 3.3" diameter RAM® Twist-Lock™ suction cup connected to a RAM-B-238U diamond base with a 1" B size rubber ball. The RAM® Twist-Lock™ suction cup base is a fan favorite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface.

Product Information

Overview

This single suction cup mount (RAM-B-166-326U) was designed in collaboration with OtterBox Hardline Series for industrial applications. This kit Includes B-size RAM® Twist-Lock™ suction cup base, medium length socket arm, and a RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series. With the quick release tab, simply push the tab to dismount the tablet without having to adjust with the mount itself. The RAM-B-224-1U suction cup base consists of a 3.3" diameter RAM® Twist-Lock™ suction cup connected to a RAM-B-238U diamond base with a 1" B size rubber ball. The RAM® Twist-Lock™ suction cup base is a fan favorite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite Cast acrylic
packaging type	Poly Bag
Weight	0.75 lb

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Suction Cup Mount with EZY-Mount™ Quick Release Adapter

Part#: RAM-B-166-326U

UPC: 793442016936

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$55.49

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Includes B-size medium length socket arm and RAM® EZY-Mount™ Quick Release Adapter for OtterBox Hardline Series
Quick release adapter with release tab for easy docking and removal of device wrapped in an OtterBox Hardline Series case
Backed by a lifetime warranty*

hardware included:

Assembly Hardware

suction size:

3.3" Diameter

socket to socket length:

hole pattern:

2-Hole AMPS: 1.912"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite
Cast acrylic

packaging type:

Poly Bag

Weight:

0.75 lb
