RAM® Magnetic Double Ball Mount with LED Spotlight

Part#: RAM-B-152-339
UPC: 793442909283

Compatibility

Kit Components

Previous Slide Next Slide
$168.49

Overview

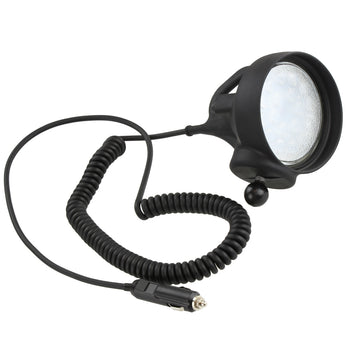

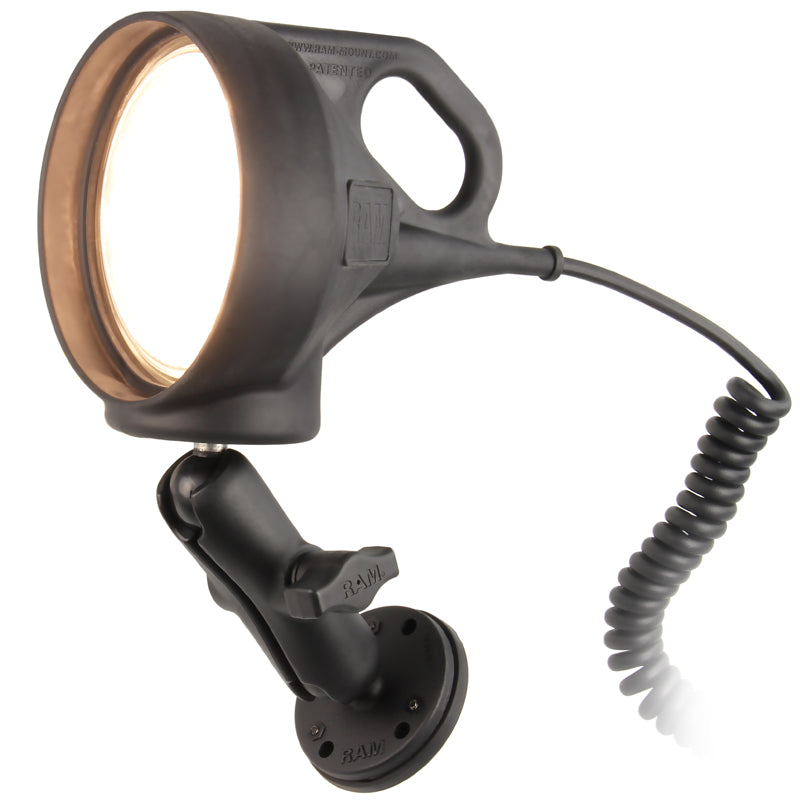

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152-339 consists of a double socket arm, the RAM Triple Magnetic Base Adapter, and the rubber coated LED spotlight. The magnetic base adapter contains 3 rare earth magnets that hold firm to ferrous metals. Simply put this product near the mounting surface and feel it almost jump out of your hand. The composite adapter designed to conceal the magnets is made of durable composite to prevent scratching the mounting surface. The patented rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, so you can set your spotlight to the perfect position.

hardware included:

Assembly Hardware

bulb specifications:

PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K Color Temp

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite
Rubber

packaging type:

Retail Bag

Weight:

2.07 lb

Additional Information:

The RAM® Spotlight and bulb are general wear items and are not covered under warranty.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Magnetic Double Ball Mount with LED Spotlight
$168.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
