$141.49

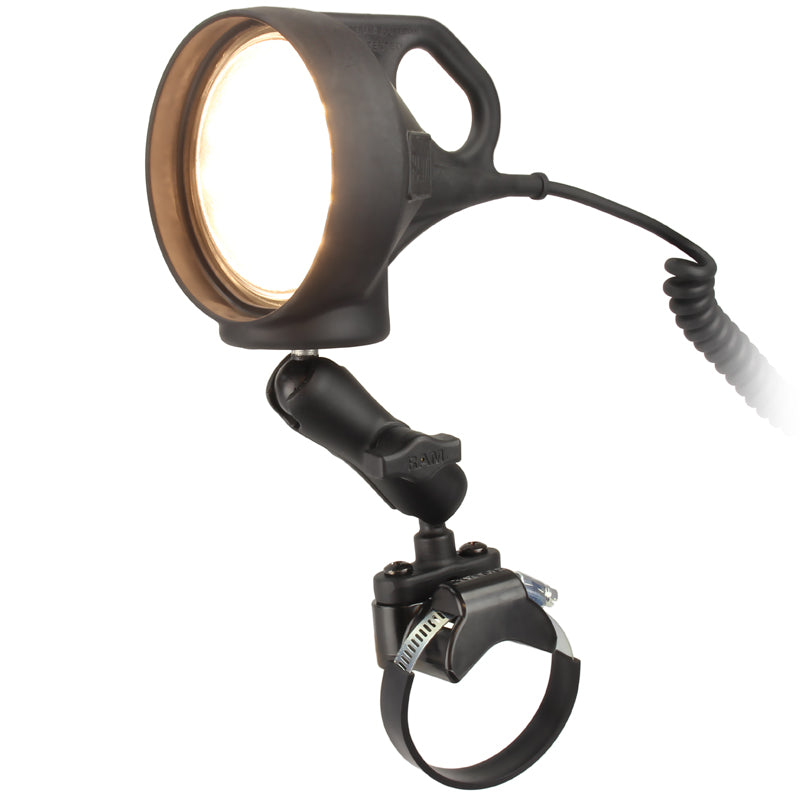

RAM® ATV/UTV Rail Mount with LED Spotlight
Part#:RAM-B-152-231Z-2 UPC:793442911873 Patented
The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152-231Z-2 consists of a double socket arm, one strap hose clamp and U-bolt base, and the rubber coated RAM LED spotlight. Designed for a clean installation, this mount accommodates most common tubing sizes on UTV’s and ATV's. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. The patented rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment to set your light in the ideal position.

hardware included

(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

bulb specifications

PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K Color Temp

clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite
Rubber

packaging type

Retail Box

Weight

2.8 lb
