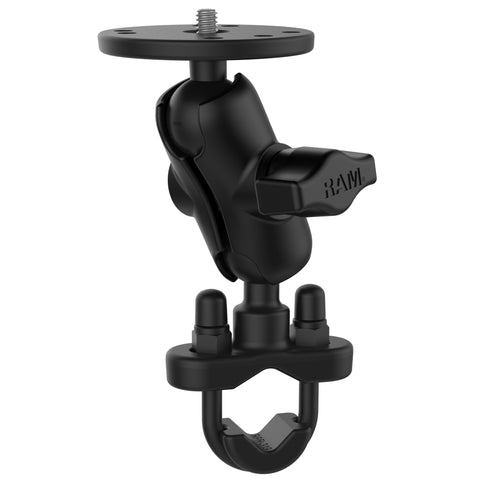

RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud
Part#:RAM-B-149ZA-C1U UPC:793442149191 Patented

Overview

The RAM zinc coated u-bolt rail base consists of the 1" diameter ball and socket system with RAM Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.

hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

1.75"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.51 lb
