RAM® X-Grip® Handlebar U-Bolt Mount for 7"-8" Tablets | |
---|---|
Part #:
RAM-B-149Z-UN8U
UPC:
793442940699
Patented
|
![]() |
Product Information | |
---|---|

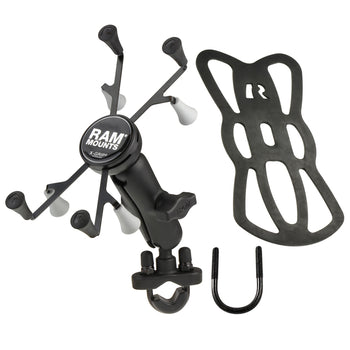

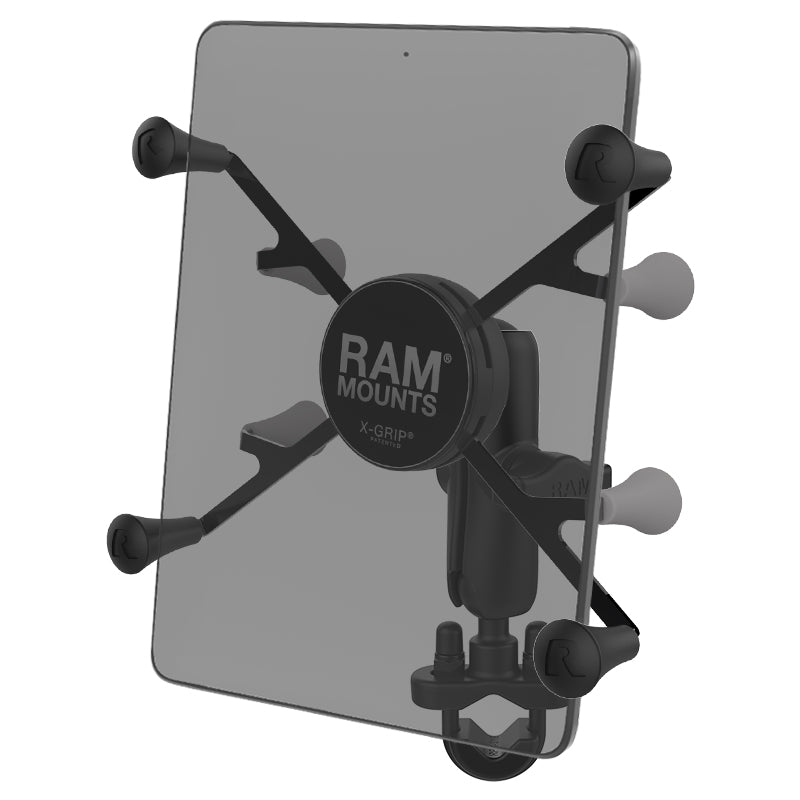

Overview | The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. |
Specifications | |
---|---|
hardware included | (1) Optional Tether (1) Glue Tube for Rubber Caps (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer |
holder dimensions | Width Range: 2.5" - 5.75" Depth Range: .875" max |
clamp range | .5" - 1.25" diameter |
socket to socket length | 3" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite Stainless steel |
packaging type | Poly Bag |
Weight | 0.8 lb |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Amazon
Fire 7
Fire HD 8
Kindle
Kindle Oasis
Kindle Paperwhite
Kindle Voyage
Apple
iPad mini (1st Generation)
iPad mini 2
iPad mini 3
iPad mini 4
iPad mini 5
iPad mini 6
iPad mini (A17 Pro)
ASUS
MeMO Pad 8
VivoTab 8
ZenPad 8.0
ZenPad C 7.0
ZenPad S 8.0
ZenPad Z8
ZenPad Z8s
Dell
Venue 7
Venue 7 (2014)
Venue 7 3741
Venue 8
Venue 8 (2014)
Venue 8 7840
Venue 8 Pro
Venue 8 Pro 5855
Nexus 7
HP
Pro Tablet 408
Slate 7
Huawei
MediaPad M3
MediaPad M3 Lite
MediaPad T1 7.0
MediaPad T1 8.0
MediaPad T3 7
MediaPad T3 8
Lenovo
Ideapad Miix 300
IdeaTab A1000
IdeaTab A2107
IdeaTab A3000
Tab 2 A7-10
Tab 2 A7-20
Tab 2 A7-30
Tab 2 A8
Tab 4 8
Tab 4 8 Plus
Tab 7 Essential
Tab A7-30
Tab A7-40
Tab A7-50
Tab A8-50
Tab M8 HD
Tab M8 4th Gen
Tab S8
Tab3 7
Tab3 8
Yoga Tablet 8
LG
G Pad 7.0
G Pad F 8.0 (2nd Gen)
G Pad F2 8.0
G Pad II 8.0
G Pad X 8.0
G Pad X II 8.0
Nvidia
Shield Tablet
Nokia
T10
Rand
McNally OverDryve 7
McNally OverDryve 7 Pro
McNally OverDryve 7 RV
McNally OverDryve 7c
McNally OverDryve 8 Pro
McNally Road Explorer 7
McNally Road Explorer 70
McNally RV Tablet 70
McNally RVND 7
McNally TND 740
McNally TND Tablet 70
McNally TND Tablet 80
Samsung
Galaxy Tab 2 7.0
Galaxy Tab 3 7.0
Galaxy Tab 3 8.0
Galaxy Tab 3 Lite 7.0
Galaxy Tab 4 7.0
Galaxy Tab 4 8.0
Galaxy Tab 7.7
Galaxy Tab A 7.0
Galaxy Tab A 7.0
Galaxy Tab A 8.0
Galaxy Tab A 8.0 (2017)
Galaxy Tab A 8.0 (2018)
Galaxy Tab A 8.0 (2019)
Galaxy Tab A 8.4
Galaxy Tab A7 Lite 8.7
Galaxy Tab Active2
Galaxy Tab E 7.0
Galaxy Tab E 8.0
Galaxy Tab Pro 8.4
Galaxy Tab S 8.4
Galaxy Tab S2 8.0
Social
Mobile Rhino T80
Vankyo
MatrixPad Z1 7"
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Amazon
Fire 7
Fire HD 8
Kindle
Kindle Oasis
Kindle Paperwhite
Kindle Voyage
Apple
iPad mini (1st Generation)
iPad mini 2
iPad mini 3
iPad mini 4
iPad mini 5
iPad mini 6
iPad mini (A17 Pro)
ASUS
MeMO Pad 8
VivoTab 8
ZenPad 8.0
ZenPad C 7.0
ZenPad S 8.0
ZenPad Z8
ZenPad Z8s
Dell
Venue 7
Venue 7 (2014)
Venue 7 3741
Venue 8
Venue 8 (2014)
Venue 8 7840
Venue 8 Pro
Venue 8 Pro 5855
Nexus 7
HP
Pro Tablet 408
Slate 7
Huawei
MediaPad M3
MediaPad M3 Lite
MediaPad T1 7.0
MediaPad T1 8.0
MediaPad T3 7
MediaPad T3 8
Lenovo
Ideapad Miix 300
IdeaTab A1000
IdeaTab A2107
IdeaTab A3000
Tab 2 A7-10
Tab 2 A7-20
Tab 2 A7-30
Tab 2 A8
Tab 4 8
Tab 4 8 Plus
Tab 7 Essential
Tab A7-30
Tab A7-40
Tab A7-50
Tab A8-50
Tab M8 HD
Tab M8 4th Gen
Tab S8
Tab3 7
Tab3 8
Yoga Tablet 8
LG
G Pad 7.0
G Pad F 8.0 (2nd Gen)
G Pad F2 8.0
G Pad II 8.0
G Pad X 8.0
G Pad X II 8.0
Nvidia
Shield Tablet
Nokia
T10
Rand
McNally OverDryve 7
McNally OverDryve 7 Pro
McNally OverDryve 7 RV
McNally OverDryve 7c
McNally OverDryve 8 Pro
McNally Road Explorer 7
McNally Road Explorer 70
McNally RV Tablet 70
McNally RVND 7
McNally TND 740
McNally TND Tablet 70
McNally TND Tablet 80
Samsung
Galaxy Tab 2 7.0
Galaxy Tab 3 7.0
Galaxy Tab 3 8.0
Galaxy Tab 3 Lite 7.0
Galaxy Tab 4 7.0
Galaxy Tab 4 8.0
Galaxy Tab 7.7
Galaxy Tab A 7.0
Galaxy Tab A 7.0
Galaxy Tab A 8.0
Galaxy Tab A 8.0 (2017)
Galaxy Tab A 8.0 (2018)
Galaxy Tab A 8.0 (2019)
Galaxy Tab A 8.4
Galaxy Tab A7 Lite 8.7
Galaxy Tab Active2
Galaxy Tab E 7.0
Galaxy Tab E 8.0
Galaxy Tab Pro 8.4
Galaxy Tab S 8.4
Galaxy Tab S2 8.0
Social
Mobile Rhino T80
Vankyo
MatrixPad Z1 7"
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-149Z-UN8U!
We'll email you once the item is available.
Overview
The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions:
Width Range: 2.5" - 5.75"
Depth Range: .875" max
clamp range:
.5" - 1.25" diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.8 lb
