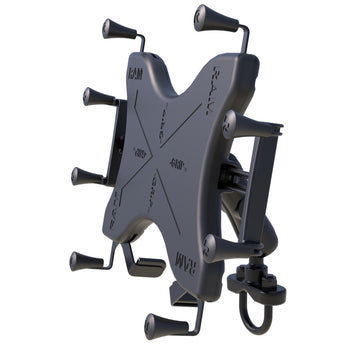

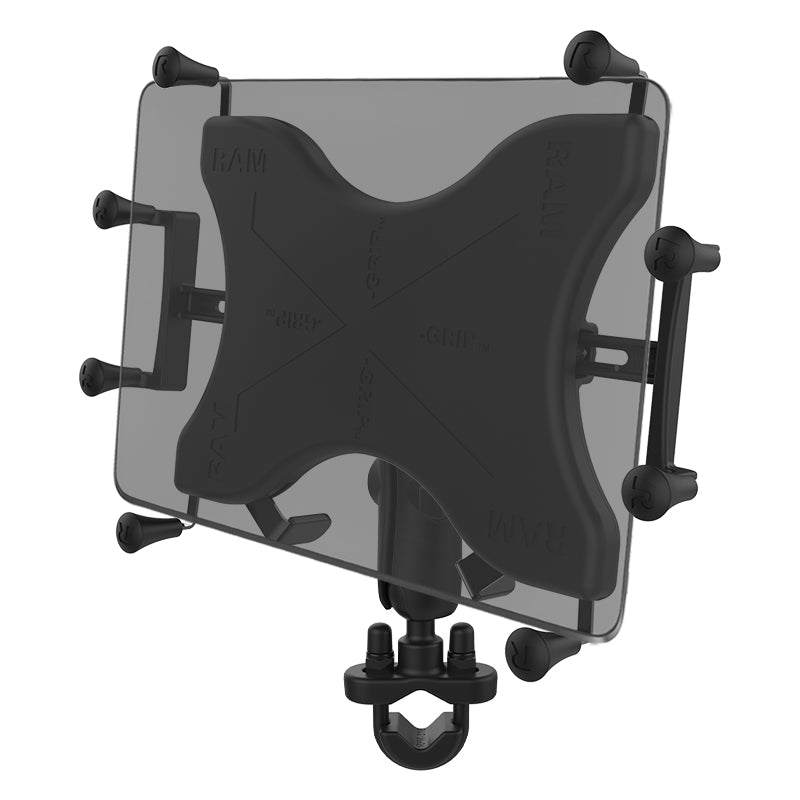

RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base
Overview

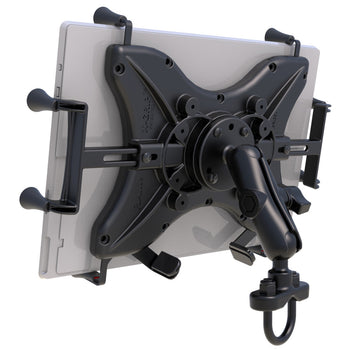

The RAM-B-149Z-UN11U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 12"-13" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12"-13" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" - 13" tablets
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

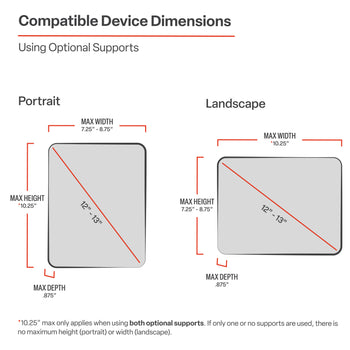

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
clamp range:
.5" - 1.25" diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.76 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-

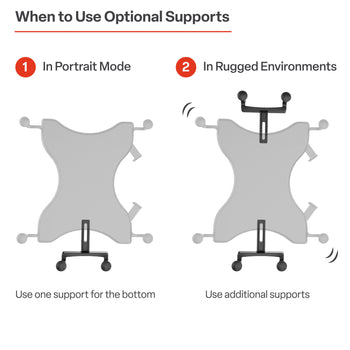

This part says it has a maximum height of 10.25" (using optional supports). Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
