Patented

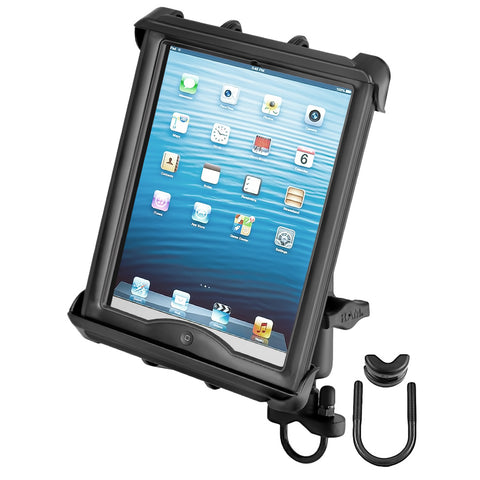

RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets with Cases
Part#: RAM-B-149Z-TAB8U
UPC: 793442939617
Ball Icon B Size
Arm Icon Medium Arm
$79.99

Overview

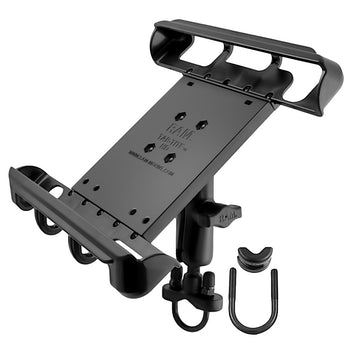

The RAM-B-149Z-TAB8U consists of a zinc coated u-bolt base, standard length double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

hardware included:

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions:

Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

clamp range:

.5" - 1.25" diameter

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.46 lb
