RAM^® Handlebar U-Bolt Base with Double Socket Arm
Part #: RAM-B-149Z-QU1U UPC: 793442907012 Patented Features Standard RAM^® double socket arm provides an ideal overall length of 3.73" and a socket-to-socket length of 3" Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Handlebar U-Bolt Base with Double Socket Arm

Part #: RAM-B-149Z-QU1U UPC: 793442907012 Patented

Features

Standard RAM^® double socket arm provides an ideal overall length of 3.73" and a socket-to-socket length of 3"
Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Handlebar U-Bolt Base with Double Socket Arm

Product Information

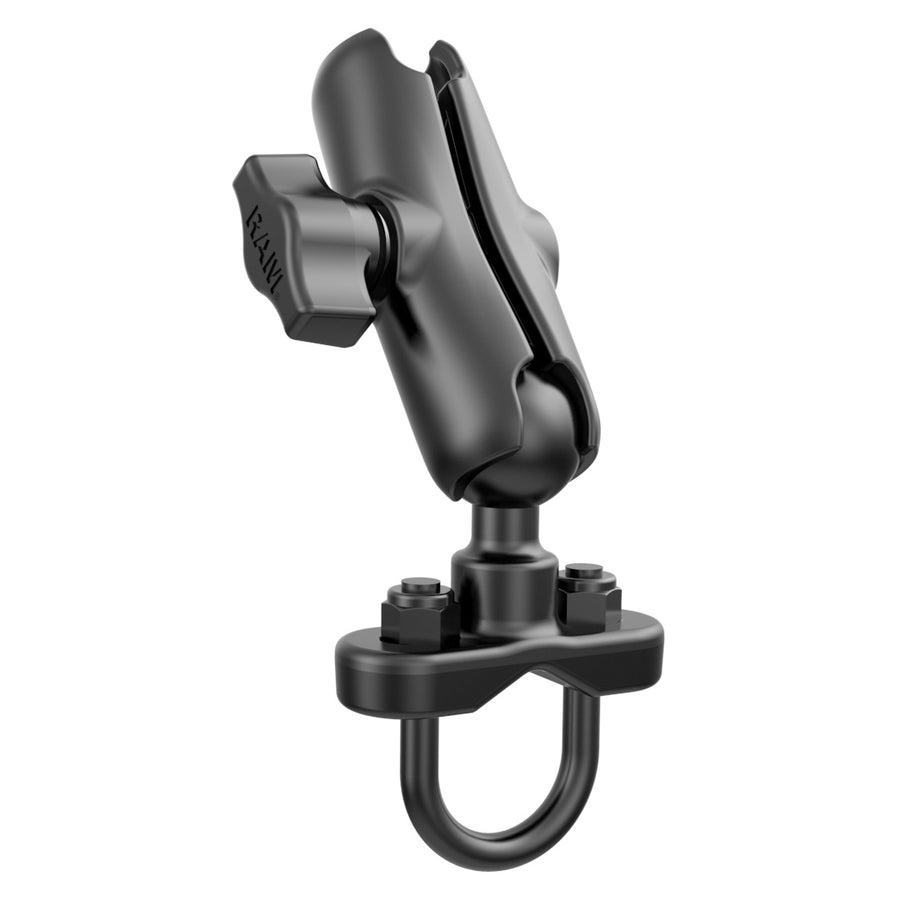

Overview	The RAM-B-149Z-QU1 consists of a zinc coated u-bolt base and double socket arm. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The zinc coated u-bolt base Accommodates rails from 0.5" to 1" in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. This is a universal mounting solution for the RAM cradles with a 1 inch ball.

Product Information

Overview

The RAM-B-149Z-QU1 consists of a zinc coated u-bolt base and double socket arm. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The zinc coated u-bolt base Accommodates rails from 0.5" to 1" in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. This is a universal mounting solution for the RAM cradles with a 1 inch ball.

Specifications
hardware included	(1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.56 lb
Additional Information	Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Questions about our products? Email us for support.

Patented

RAM^® Handlebar U-Bolt Base with Double Socket Arm

Part#: RAM-B-149Z-QU1U

UPC: 793442907012

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

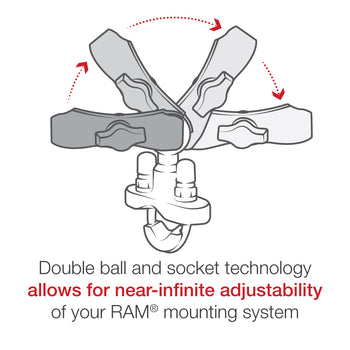

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
