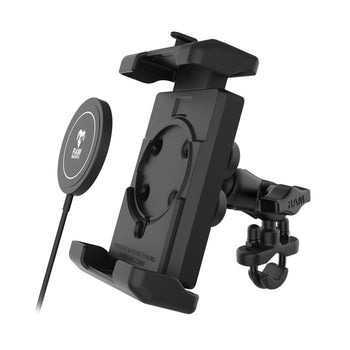

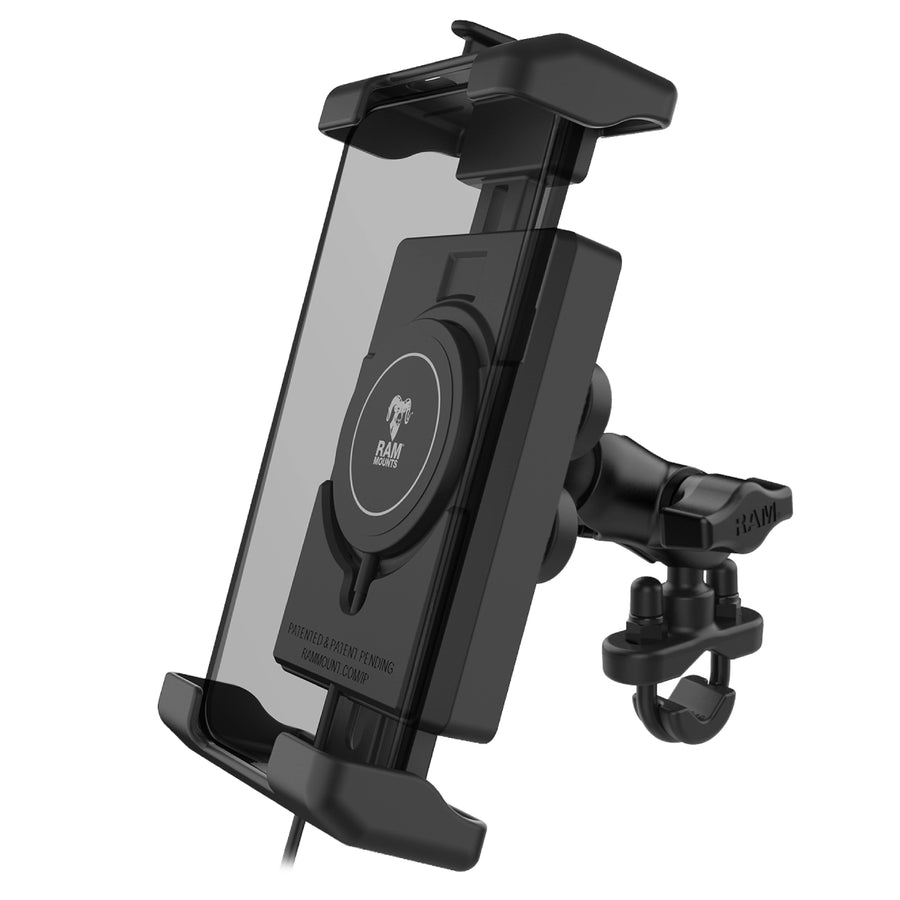

RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger
$210.49
Overview

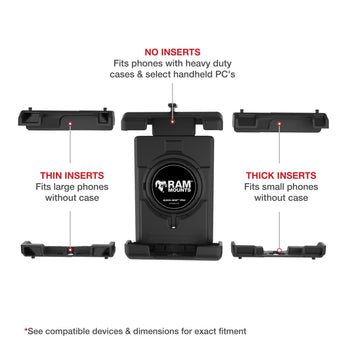

The RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger (RAM-B-149Z-A-PD7V-W2MU) is an ideal handlebar solution featuring the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

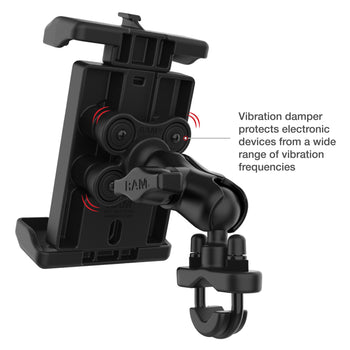

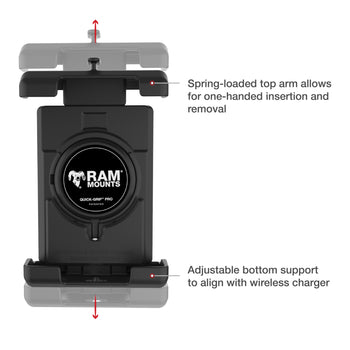

- Spring-loaded holder with integrated vibration damper provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

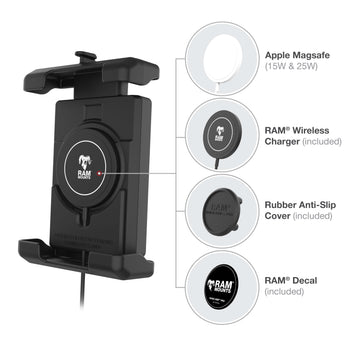

- Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
- Made of high-strength composite for durability and reliability; Wireless charger features IP67 waterproof rating for withstanding water and dust in the most extreme conditions
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

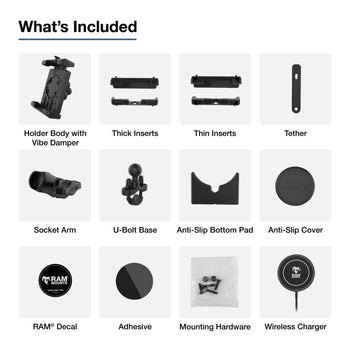

hardware included:
Assembly Hardware
(1) RAM® Qi2 Wireless Charging Puck
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions:
Height Range: 5.375" - 7"
Width Range: 2.75" - 3.5"
Max Depth: .75"
clamp range:
.5" - 1.25" diameter
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
power specifications:
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage:
USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output:
BPP - 5W
EPP - 7.5W
MPP - 15W
output connector:
USB Type-C Male with USB-A Adapter
output cable length:
1 Meter
operating temperature:
0°C to +40°C
storage temperature:
-20°C to +80°C
regulatory:
Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications:
IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Weight:
1.31 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
max phone height with otterboc case
The max height this holder can accomadate is 7"
