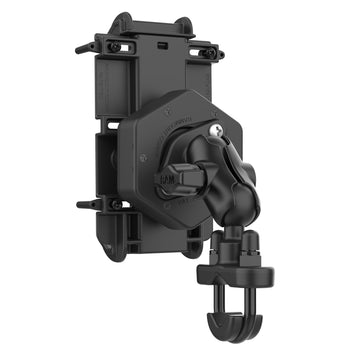

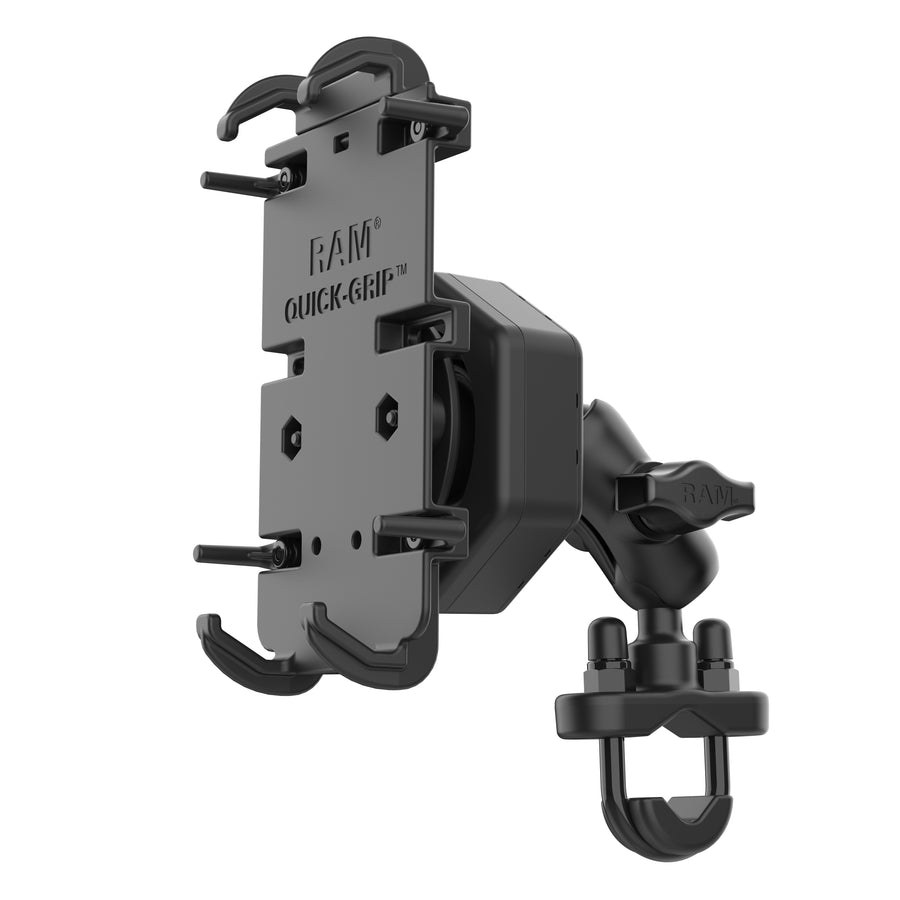

RAM® Quick-Grip XL Phone Mount with Vibe-Safe & U-Bolt Base - Short
Part#: RAM-B-149Z-A-PD4-462
UPC: 793442017926
Ball Icon B Size
Arm Icon Short Arm
$107.49

Overview

The RAM® Quick-Grip XL Phone Mount with RAM® Vibe-Safe & U-Bolt Base - Short (RAM-B-149Z-A-PD4-462) is a combination of the RAM® Quick-Grip XL Phone Mount and the RAM® Vibe-Safe—our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM® Vibe-Safe is based on an NPT connection point and boasts the versatility to rotate between portrait and landscape while keeping your device secure in rugged environments. This product includes one (1) short B size arm and one (1) RAM® U-Bolt Base that accomodates rails from .5" - 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

  • RAM® Vibe-Safe dampens a wide range of vibration frequencies
  • NPT thread connection allows for rotation between portrait and landscape while remaining secure
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Unique structure and thoughtfully designed with all industries in mind
  • Backed by a lifetime warranty

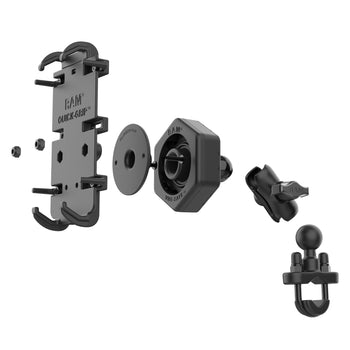

hardware included:

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions:

Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

clamp range:

.5" - 1.25" diameter

socket to socket length:

1.75"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Retail Bag

Weight:

1.13 lb

Additional Information:

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.

Questions & Answers

Have a Question?

Ask a Question
  • Will this work with the Samsung Galaxy ZFold 5? It says it's compatible with the Fold 2 and 3

    It should hold the Zfold 5 as well as long as it's with these dimension ranges:

    Height Range: 5.75" - 8.25"
    Width Range: 2.625" - 3.625"
    Max Depth: .72"

  • Will this work with the phone 13 and otterbox case?

    Yes, as long as the phone fits within these dimensions Height Range: 5.75" - 8.25"  Width Range: 2.625" - 3.625"  Max Depth: .72"

  • Does it fit the Samsung S21 Ultra? I don't see it on your list.

    Yes, the Quick Grip XL phone holder that's included as part of the RAM-B-149Z-A-PD4-462 will accommodate a Samsung S21 Ultra in most cases.  If you have any concerns about your case, the range of compatible dimensions for that holder is provided in the Overview section of that product page.
