Patented

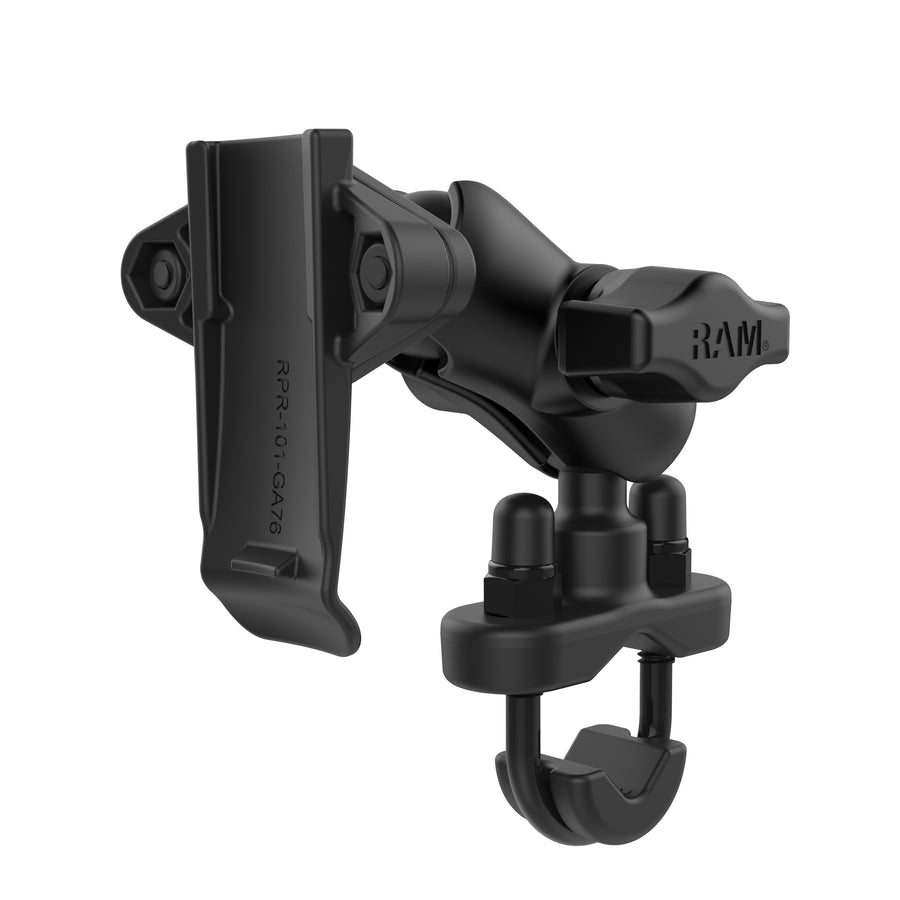

RAM® Spine Clip Garmin Mount with Handlebar U-Bolt Base
Part#: RAM-B-149Z-A-GA76U
UPC: 793442012433
Ball Icon B Size
Arm Icon Short Arm
$48.49

Overview

The RAM® Spine Clip holder is a mount adapter that easily clips into the integrated spine connection on a wide variety of Garmin devices. Included is a medium length RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. This ideal motorcycle mount is perfect for securing your Garmin device in the harshest conditions.

Features

  • Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, short double socket arm and RAM® U-Bolt base
  • Holder secures any Garmin handheld device with an integrated spine connection
  • U-bolt base includes bar spacer and accommodates rails from .5" to 1.25" in diameter
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range:

.5" - 1.25" diameter

socket to socket length:

1.75"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.68 lb
