RAM^® Tough-Tray^™ Tablet Mount with U-Bolt Rail Base
Part #: RAM-B-149Z-234-6U UPC: 793442939945 Patented

Product Information

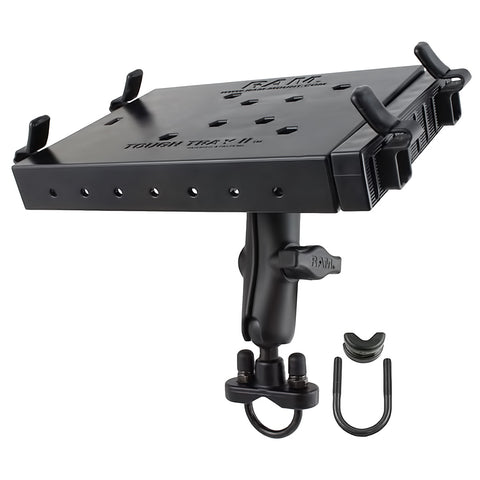

Overview	The RAM-B-149Z-234-6U consists of a medium Length, B-size arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and the RAM^® Tough-Tray^™ II Spring Loaded Netbook/Tablet Holder.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
tray dimensions	Width Range: 8.56" - 11.2" Side Arm Clamp Height: 2.75" max Tray Depth: 6" Tray Thickness: 1"
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.84 lb
