RAM® ATV/UTV Double Ball Rail Mount with 1/4"-20 Threaded Stud
Part#:RAM-B-149Z-2-237 UPC:793442930010 Patented

Overview

The RAM-B-149Z-2-237 consists of a medium length B-size double socket arm with a 1/4"-20 threaded stud and an ATV/UTV clamp base.

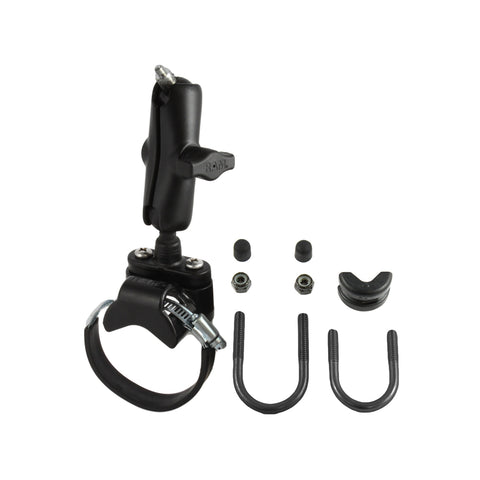

hardware included

(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

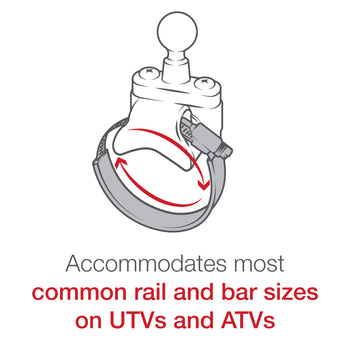

clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Retail Bag

Weight

0.61 lb
