RAM® Handlebar U-Bolt Mount for Garmin Rino 520, 520HCx, 530 & 530HCx
Part #: RAM-B-149-GA20 UPC: 793442929755 Patented

Product Information

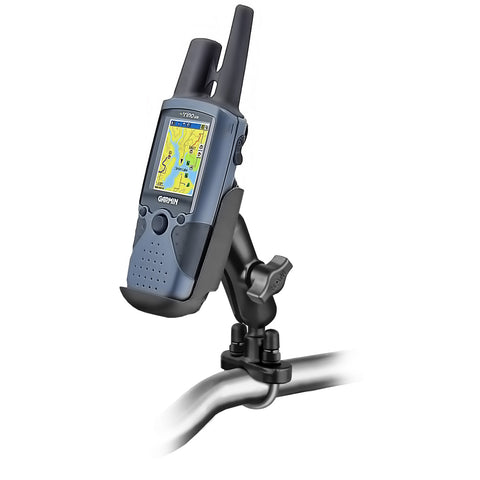

Overview	The RAM-B-149-GA20 consists of a stainless steel u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin Rino 520 and 530 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP® mount to your optimum viewing position. Included in this package is a GPS safety lanyard clip and hardware that will accommodate rails from 0.50" to 1" in diameter.

Product Information

Overview

The RAM-B-149-GA20 consists of a stainless steel u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin Rino 520 and 530 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP® mount to your optimum viewing position. Included in this package is a GPS safety lanyard clip and hardware that will accommodate rails from 0.50" to 1" in diameter.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	0.54 lb
