RAM® Double Ball Drill-Down Mount with Universal Spring Loaded Holder
$66.49
Drill-Down Mount

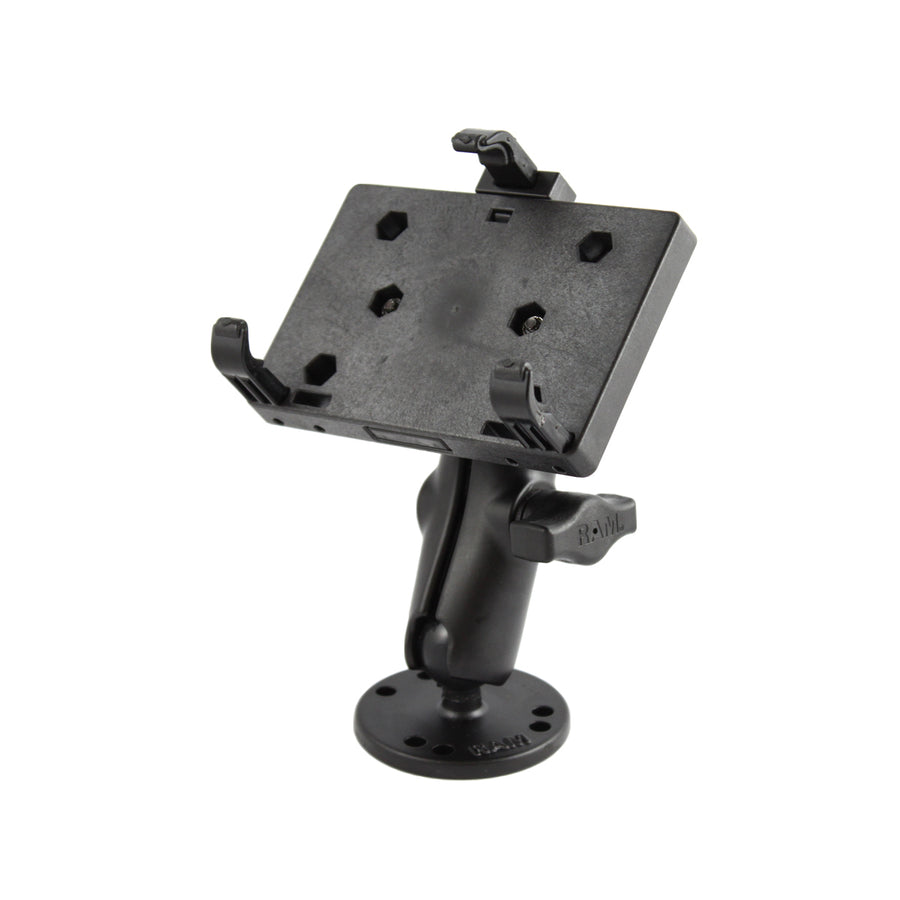

The RAM-B-138-PD2U consists of a Medium length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern and our Universal Spring Loaded Holder for PDA Devices.
RAM® Double Ball Drill-Down Mount with Universal Spring Loaded Holder
Overview
The RAM-B-138-PD2U consists of a Medium length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern and our Universal Spring Loaded Holder for PDA Devices.
hardware included
Assembly Hardware
holder dimensions
Width Range: 2.875" - 3.5"
Depth Range: .375" - 1.125"
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.77 lb
