$116.49
Print Details

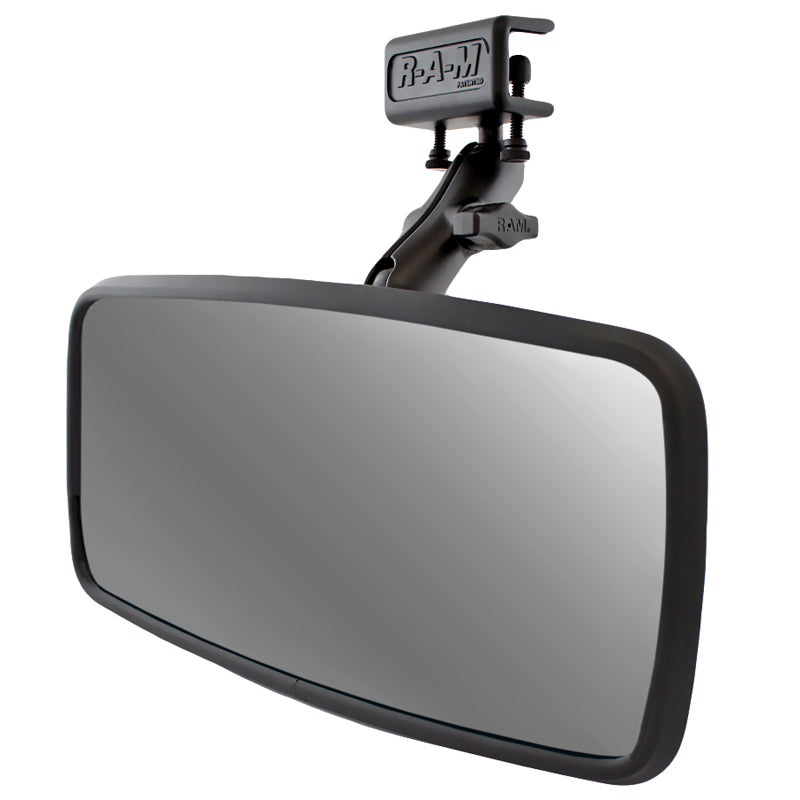

RAM® Glare Shield Clamp Mount with Rear View Mirror
Part#:RAM-B-126 UPC:793442101267 Patented

Overview

The RAM-B-126 consists of a glare shield clamp base, double socket arm and 7" x 14" mirror. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included

Assembly Hardware

clamp range

.625" max

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Retail Box

Weight

3.2 lb

Components

RAM® Double Socket Arm RAM-B-201U $18.49
