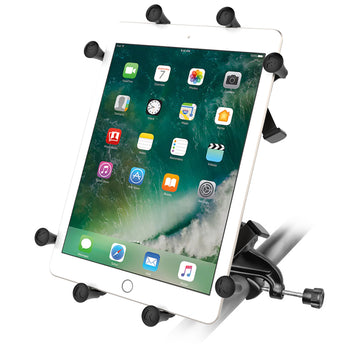

RAM® X-Grip® Mount with Yoke Clamp Base for 9"-11" Tablets
Part #: RAM-B-121-UN9U UPC: 793442937170 Patented

Product Information

Overview

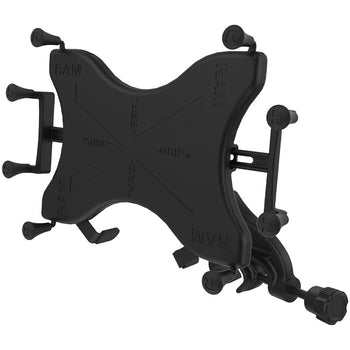

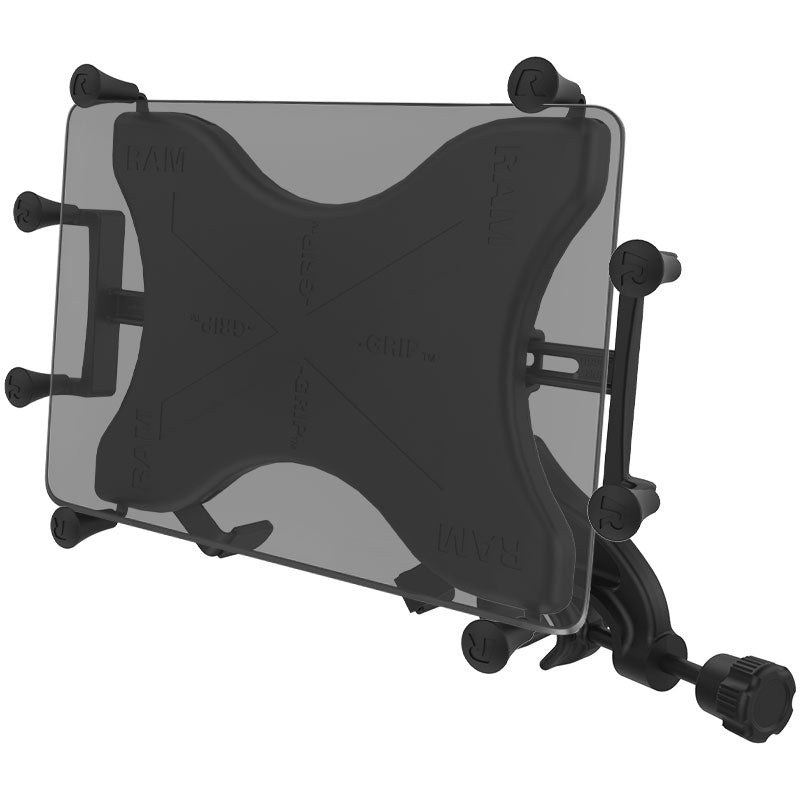

The RAM-B-121-UN9U consists of a yoke clamp base, double socket arm, round adapter base and universal X-Grip® clamping cradle for 9"-11" tablets. The RAM yoke clamp mount will fit rails from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 9"-11" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.

Specifications
hardware included	Assembly Hardware

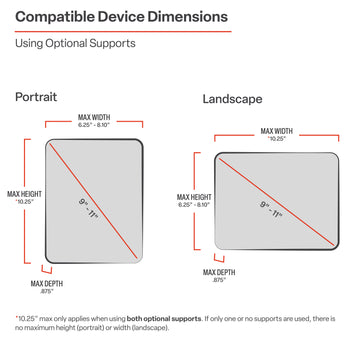

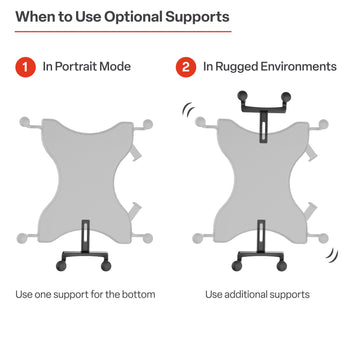

holder dimensions	Max Height: 10.25" (using optional supports) Width Range: 6.25" - 8.1" Max Depth: .875"
clamp range	.625" - 1.25"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.83 lb

RAM® X-Grip® Mount with Yoke Clamp Base for 9"-11" Tablets

Video Thumbnail — YouTube video thumbnail for bLlbujrDOks

Patented

RAM® X-Grip® Mount with Yoke Clamp Base for 9"-11" Tablets

Name: RAM® X-Grip® Mount with Yoke Clamp Base for 9"-11" Tablets
Brand: RAM Mounts
SKU: RAM-B-121-UN9U
Price: 166.99 USD
Availability: InStock

Part#: RAM-B-121-UN9U

UPC: 793442937170

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
