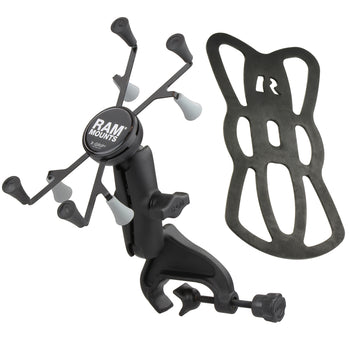

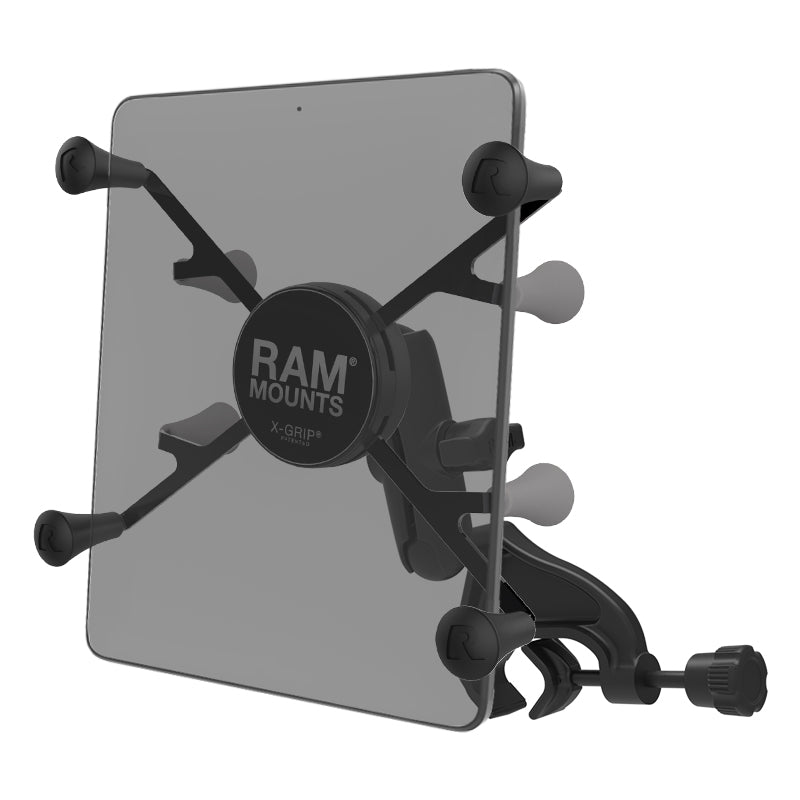

RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
$96.49
Yoke Clamp Mount
The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring loaded X-Grip® cradle for 7"-8" tablets. The yoke clamp base will fit rails from 0.625" to a maximum of 1.25". The 1" rubber ball is positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
RAM® X-Grip® Mount with Yoke Clamp Base for 7"-8" Tablets
Overview
The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring loaded X-Grip® cradle for 7"-8" tablets. The yoke clamp base will fit rails from 0.625" to a maximum of 1.25". The 1" rubber ball is positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions
Width Range: 2.5" - 5.75"
Depth Range: .875" max
clamp range
.625" - 1.25"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.94 lb
