Overview

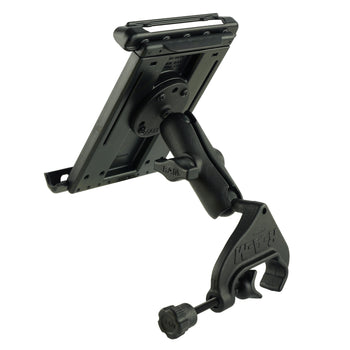

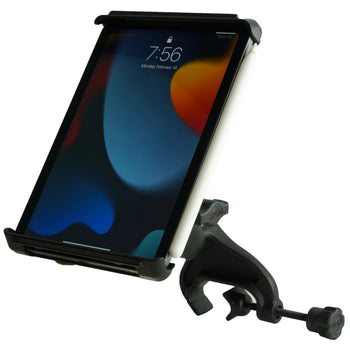

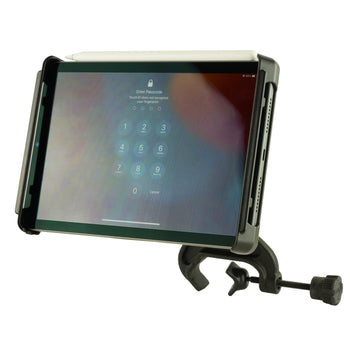

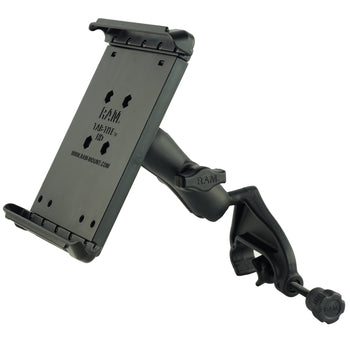

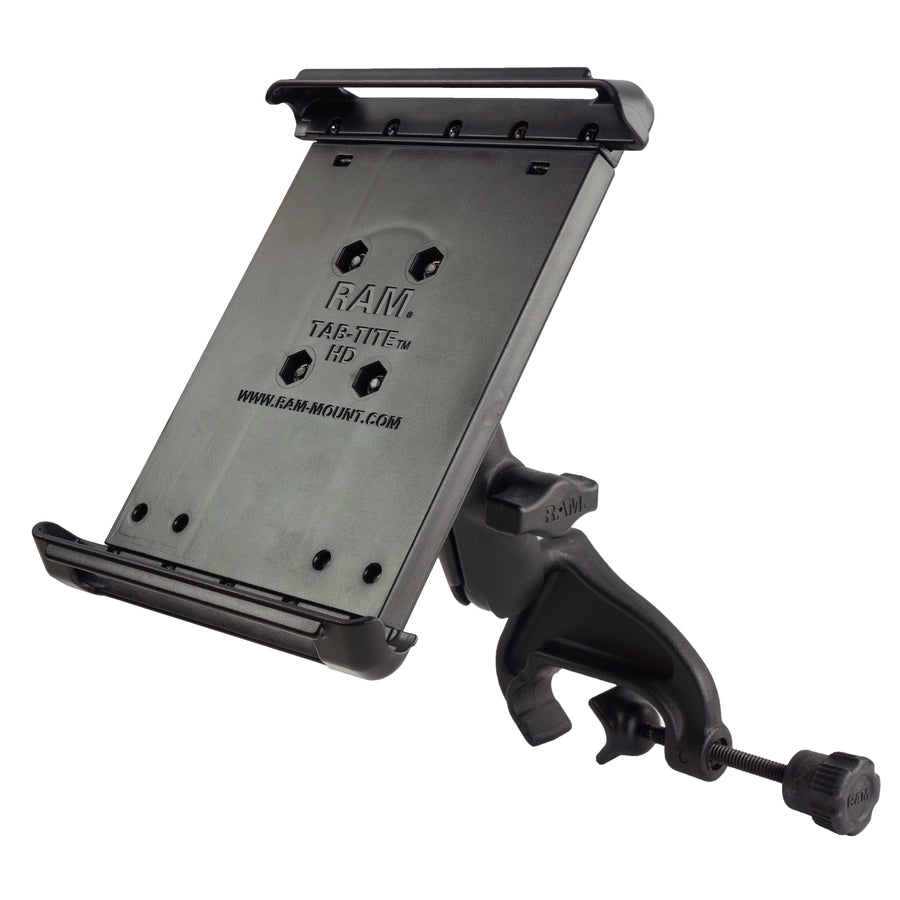

This ideal airplane yoke mount is designed specifically to hold small tablets including the iPad mini (A17 Pro) & mini 6 with or without a thin case, and consists of a RAM® Tab-Tite™, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, and leaves access to connect the Apple Pencil directly to the iPad mini 6. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
Features
- Spring-loaded holder secures small tablets with or without thin cases including iPad mini (A17 Pro) & mini 6 and previous mini models; interchangeable end cups allow you to modify the holder when upgrading devices
- Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount
- Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
holder dimensions:
Height Range: 7" - 9.625"
Width Range: 4" - 5.31"
Depth Range: .13" - .56"
clamp range:
.625" - 1.25"
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.42 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
Instructions
Documents
QUESTIONS & ANSWERS
Have a Question?
-
Will this work on a Piper Seneca yoke?
The yoke mount portion of the RAM-B-121-TAB2U will accommodate a yoke between .625" and 1.25" in diameter.
