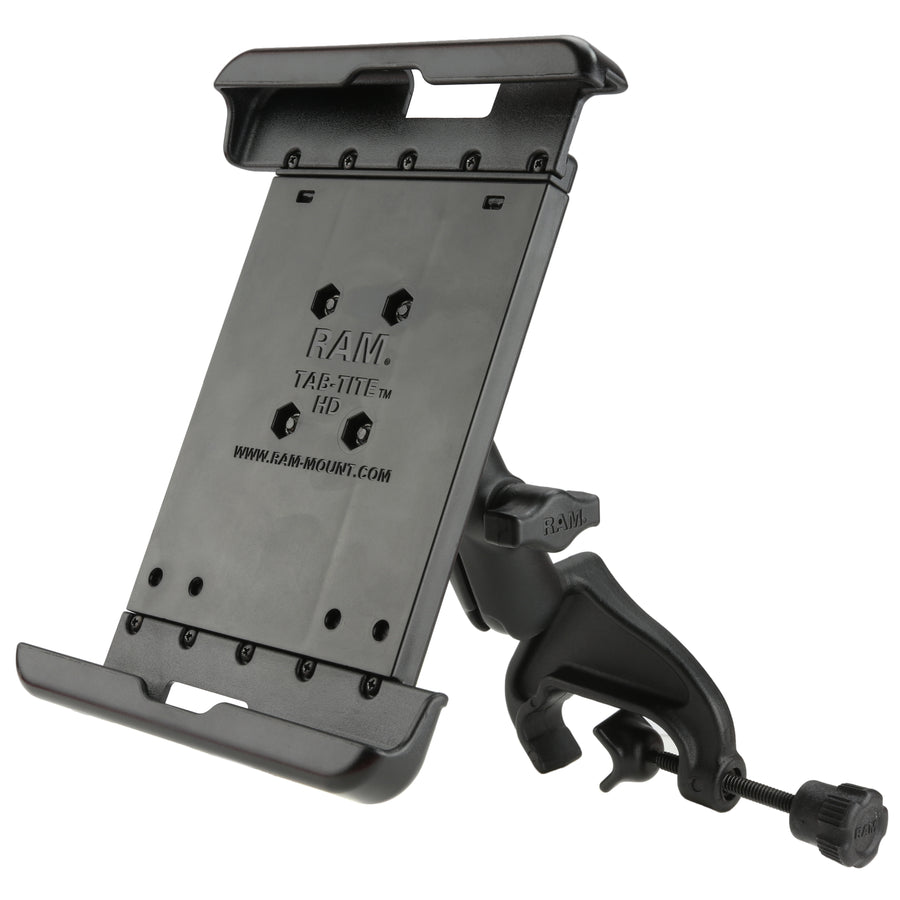

RAM^® Tab-Tite^™ Yoke Clamp Mount for 8" Tablets with Case
Part #: RAM-B-121-TAB29U UPC: 793442014314 Patented Features Spring-loaded holder secures most 8" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Tab-Tite^™ Yoke Clamp Mount for 8" Tablets with Case

Part #: RAM-B-121-TAB29U UPC: 793442014314 Patented

Features

Spring-loaded holder secures most 8" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Tab-Tite<sup>™</sup> Yoke Clamp Mount for 8

Product Information
Overview	This ideal airplane yoke mount includes a spring-loaded holder that secures most 8" tablets with a case, and consists of a yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPs hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM^® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. In addition to most 8" tables with a cases, this holder can also accommodate the Samsung Galaxy Tab A 10.1 (2019).

Product Information

Overview

This ideal airplane yoke mount includes a spring-loaded holder that secures most 8" tablets with a case, and consists of a yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPs hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM^® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. In addition to most 8" tables with a cases, this holder can also accommodate the Samsung Galaxy Tab A 10.1 (2019).

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 8.25" - 11" Width Range: 5" - 5.88" Depth Range: .3" - .67"
clamp range	.625" - 1.25"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.78 lb

RAM<sup>®</sup> Tab-Tite<sup>™</sup> Yoke Clamp Mount for 8" Tablets with Case

Questions about our products? Email us for support.

Patented

RAM^® Tab-Tite^™ Yoke Clamp Mount for 8" Tablets with Case

Part#: RAM-B-121-TAB29U

UPC: 793442014314

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$90.49

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Spring-loaded holder secures most 8" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 8.25" - 11"
Width Range: 5" - 5.88"
Depth Range: .3" - .67"

clamp range:

.625" - 1.25"

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.78 lb

Print

Instructions

RAM^® Tab-Tite^™ Assembly Guide

Documents

Drawing File - Yoke Clamp Base

How to Find the Right Holder for Your Tablet

Questions & Answers

Have a Question?

Ask a Question

HI I HAVE AN IPAD 6 ( not mini) WICH CAN I BUY?

Yes, the full size iPad gen six can fit into that mount as long it falls within these dimension ranges:

Height: 8.25"-11"
Width: 5"-5.88"
Thickness: .3"-.67"

However, the Tab29 cradle is not usually what is used for the full-size iPads. Most customers use the RAM-HOL-TAB20U cradle. We don't have a complete yoke kit with that cradle included, but these two parts would form a complete application:

RAM-HOL-TAB20U and RAM-B-121-202U
