RAM® Double Ball Yoke Clamp Mount for Garmin 695 & 696
Part #: RAM-B-121-GA38U UPC: 793442927683 Patented & Pats. Pend.

Product Information

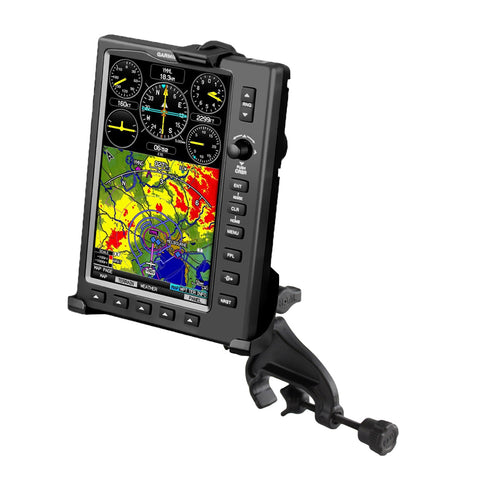

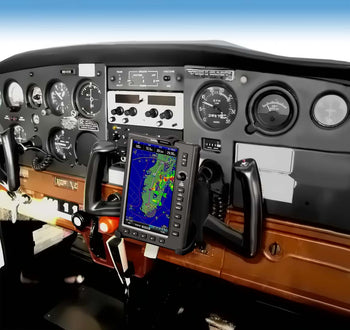

Overview	The RAM-B-121-GA38U consists of a yoke clamp base, double socket arm and cradle for the Garmin GPSMAP® 695/696. The RAM yoke clamp mount will fit rails from 0.625" to a maximum of 1.25". Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the yoke clamp mount to your optimum viewing position.

Product Information

Overview

The RAM-B-121-GA38U consists of a yoke clamp base, double socket arm and cradle for the Garmin GPSMAP® 695/696. The RAM yoke clamp mount will fit rails from 0.625" to a maximum of 1.25". Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the yoke clamp mount to your optimum viewing position.

Specifications
hardware included	Assembly Hardware
clamp range	.625" - 1.25"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.05 lb

RAM® Double Ball Yoke Clamp Mount for Garmin 695 & 696

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® Double Ball Yoke Clamp Mount for Garmin 695 & 696

Part#: RAM-B-121-GA38U

UPC: 793442927683

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
