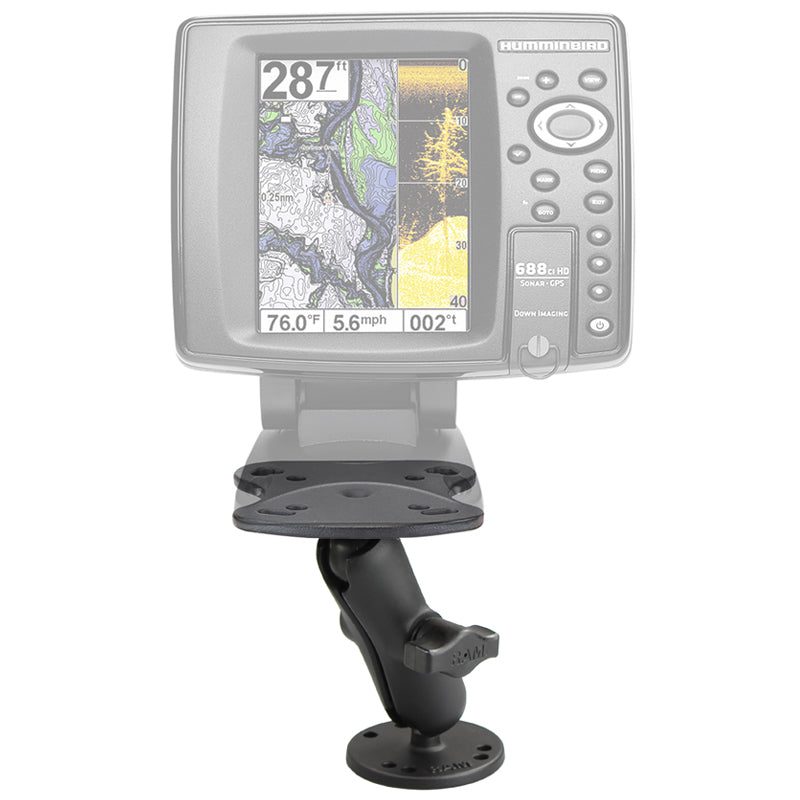

RAM® Fish Finder Mount for Humminbird Devices - B Size Medium
Overview
The RAM® Fish Finder Mount for Humminbird Devices - B Size Medium (RAM-B-107U) is a light-duty solution for securing smaller marine electronics to your vessel. It includes a device-specific ball base, a medium-length double socket arm, and a 2.5" diameter round drill-down ball base with the universal AMPS hole pattern. The mount is fully adjustable, allowing users to quickly dial in their ideal viewing angle. Compatible devices include Humminbird 100, 300, 500, 600, and 700 series; Humminbird Matrix Series (excluding Matrix 97); Lowrance Elite-5, -5M, and -5X; and Raymarine Apelco fish finder units with a matching hole pattern.
Features
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 5"
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size:
Fish finder Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.77 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
