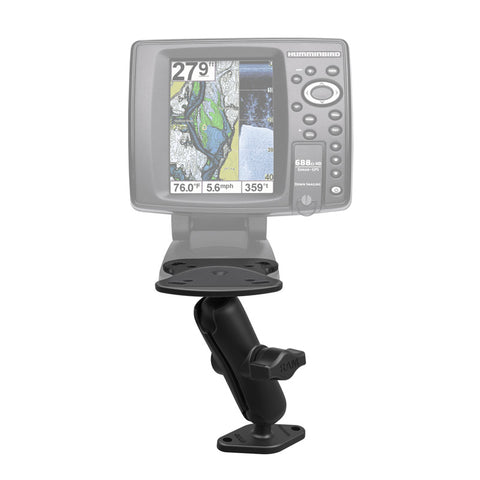

RAM® Fishfinder Diamond Plate Mount for Humminbird Devices
Part #: RAM-B-107U-238 UPC: 793442905124

Product Information
Overview	The RAM-B-107U-238 consists of a double socket arm, diamond base and connecting Humminbird/Apelco marine base. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The diamond base contains two holes 1.912" from center to center, positioned at both ends of the base. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

The RAM-B-107U-238 consists of a double socket arm, diamond base and connecting Humminbird/Apelco marine base. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The diamond base contains two holes 1.912" from center to center, positioned at both ends of the base. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications
product dimensions	Overall Height: 5"
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912" See Drawing
plate size	Fishfinder Plate: 4.25" x 3.81" Round Plate: 2.43" x 1.31"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.72 lb

RAM® Fishfinder Diamond Plate Mount for Humminbird Devices

Questions about our products? Email us for support.

RAM® Fishfinder Diamond Plate Mount for Humminbird Devices

Part#: RAM-B-107U-238

UPC: 793442905124

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
