Overview

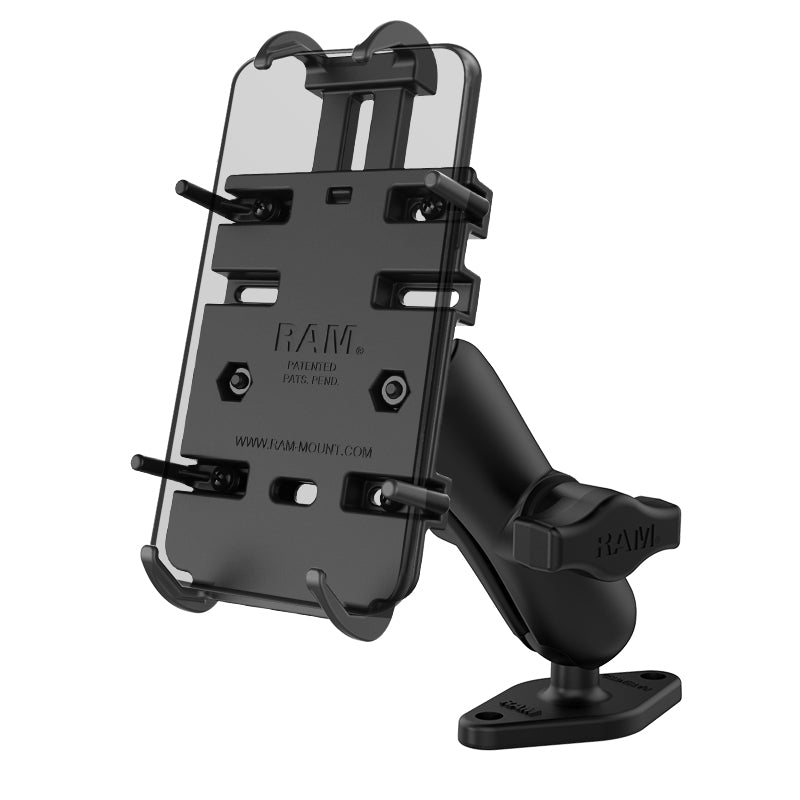

The RAM Quick-Grip™ Flat Surface Mount consists of a 2-hole diamond drill-down base, a double socket arm and spring loaded cradle for supporting most phones. Integrating the industry standard AMPS hole pattern, this mount can connect to any flat surface or to the side of the RAM Tough-Tray™. The double ball and socket design provides adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.
hardware included:
Asssembly Hardware
holder dimensions:
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"
socket to socket length:
3"
hole pattern:
2-Hole AMPS: 1.912"
plate size:
2.43" x 1.31"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.68 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Instructions
Documents
Questions & Answers
Have a Question?
-
Does this have to be screwed into the surface or is it a suction?
The RAM-B-102-PD3U is a drill down base but the RAM-B-166-PD3U has the same holder, medium length double socket arm, and a suction cup.
