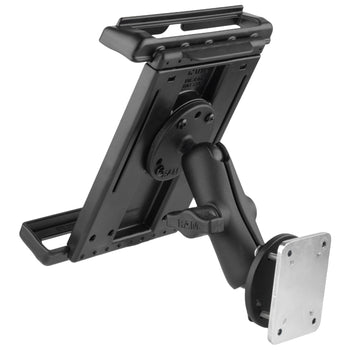

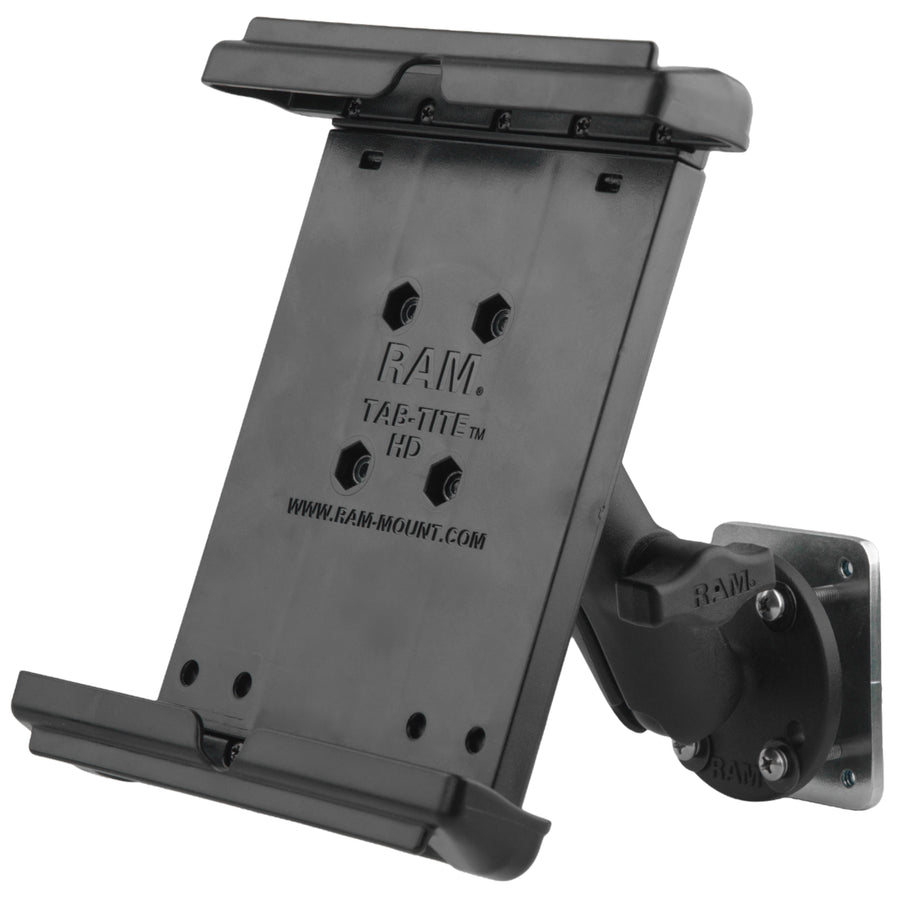

RAM^® Dashboard Mount with Backing Plate for 8" Tablets with Cases
Part #: RAM-B-101B2-TAB12U UPC: 793442801969 Patented Features Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Dashboard Mount with Backing Plate for 8" Tablets with Cases

Part #: RAM-B-101B2-TAB12U UPC: 793442801969 Patented

Features

Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Dashboard Mount with Backing Plate for 8

Product Information
Overview	This vehicle kit consists of a RAM^® Tab-Tite^™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Product Information

Overview

This vehicle kit consists of a RAM^® Tab-Tite^™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Specifications
hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers
holder dimensions	Height Range: 7.125" - 9.5" Width Range: 5.06" - 5.68" Depth Range: .13" - 1"
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite Powder coated steel
packaging type	Poly Bag
Weight	1.36 lb

RAM<sup>®</sup> Dashboard Mount with Backing Plate for 8" Tablets with Cases

Video Thumbnail — YouTube video thumbnail for Uuf9odZCCmE

Questions about our products? Email us for support.

Patented

RAM^® Dashboard Mount with Backing Plate for 8" Tablets with Cases

Part#: RAM-B-101B2-TAB12U

UPC: 793442801969

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Apple

iPad mini (A17 Pro) with Case

iPad mini 6 with Case

Amazon

Fire 7 Kids

Fire HD 8 Kids

Fire HD 8 with Case

ASUS

MeMO Pad 8 with Case

VivoTab 8 with Case

Dell

Venue 8 with Case

Venue 8 (2014) with Case

Venue 8 7840 with Case

Venue 8 Pro with Case

Huawei

MediaPad M3 with Case

MediaPad M3 Lite with Case

MediaPad T1 8.0 with Case

MediaPad T3 8 with Case

Lenovo

Ideapad Miix 300 with Case

IdeaTab A2107 with Case

Tab 2 A8 with Case

Tab 4 8 with Case

Tab 4 8 Plus with Case

Tab A8-50 with Case

Tab S8 with Case

Tab3 8 with Case

LG

G Pad F 8.0 (2nd Gen) with Case

G Pad F2 8.0 with Case

G Pad II 8.0 with Case

G Pad X II 8.0 with Case

Nvidia

Shield Tablet with Case

Panasonic

Toughpad FZ-M1

Samsung

Galaxy Tab 2 7.0 with Case

Galaxy Tab 3 8.0 with Case

Galaxy Tab A 8.4 with Case

Galaxy Tab A7 Lite 8.7 with Case

Galaxy Tab E 8.0 with Case

Galaxy Tab Pro 8.4 with Case

Social

Mobile Rhino T80

$77.49

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Apple

iPad mini (A17 Pro) with Case

iPad mini 6 with Case

Amazon

Fire 7 Kids

Fire HD 8 Kids

Fire HD 8 with Case

ASUS

MeMO Pad 8 with Case

VivoTab 8 with Case

Dell

Venue 8 with Case

Venue 8 (2014) with Case

Venue 8 7840 with Case

Venue 8 Pro with Case

Huawei

MediaPad M3 with Case

MediaPad M3 Lite with Case

MediaPad T1 8.0 with Case

MediaPad T3 8 with Case

Lenovo

Ideapad Miix 300 with Case

IdeaTab A2107 with Case

Tab 2 A8 with Case

Tab 4 8 with Case

Tab 4 8 Plus with Case

Tab A8-50 with Case

Tab S8 with Case

Tab3 8 with Case

LG

G Pad F 8.0 (2nd Gen) with Case

G Pad F2 8.0 with Case

G Pad II 8.0 with Case

G Pad X II 8.0 with Case

Nvidia

Shield Tablet with Case

Panasonic

Toughpad FZ-M1

Samsung

Galaxy Tab 2 7.0 with Case

Galaxy Tab 3 8.0 with Case

Galaxy Tab A 8.4 with Case

Galaxy Tab A7 Lite 8.7 with Case

Galaxy Tab E 8.0 with Case

Galaxy Tab Pro 8.4 with Case

Social

Mobile Rhino T80

Overview

Features

Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

holder dimensions:

Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"

socket to socket length:

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite
Powder coated steel

packaging type:

Poly Bag

Weight:

1.36 lb

Print

Instructions

RAM^® Tab-Tite^™ Assembly Guide
