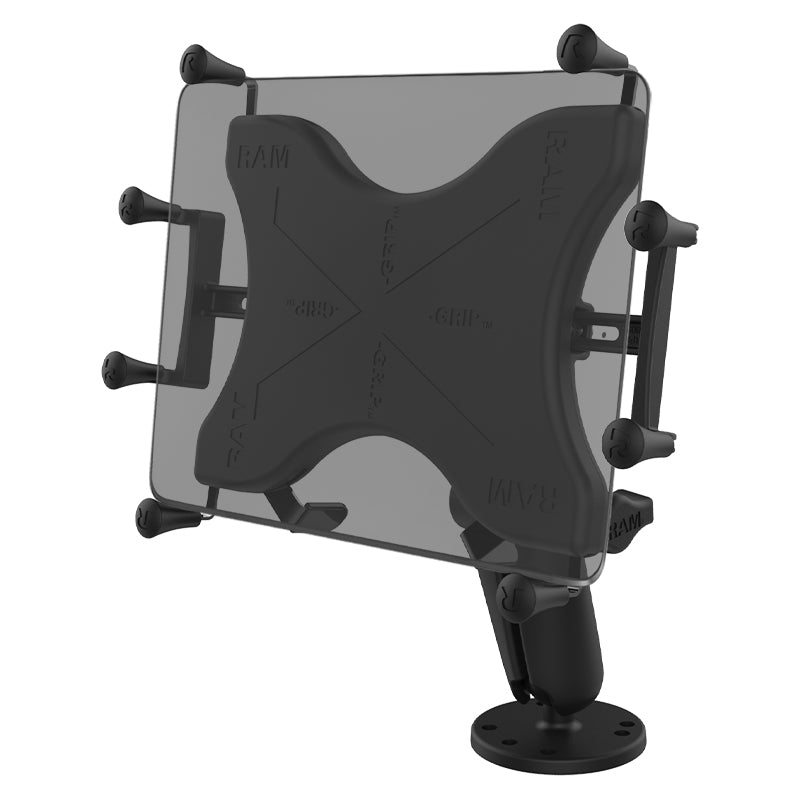

RAM® X-Grip® Drill-Down Double Ball Mount for 12"-13" Tablets | |
---|---|
Part #:
RAM-B-101-C-UN11U
UPC:
793442946752
Features
|
![]() |
Product Information | |
---|---|
Overview | The RAM-B-101-C-UN11U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole pattern, long double socket arm and universal X-Grip® clamping cradle for 12"-13" tablets. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12"-13" tablets with or without sleeves, as well as some smaller tablets. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. |
Specifications | |
---|---|
hardware included | Assembly Hardware |
holder dimensions | Max Height: 10.25" (using optional supports) Width Range: 7.25" - 8.75" Max Depth: .875" |
socket to socket length | 5.31" |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 1.91 lb |
Additional Information | This holder is compatible with the iPad Pro 12.9 without case only. |




Compatible Devices
Apple
iPad Pro 12.9 (1st Gen)
iPad Pro 12.9 (2nd Gen)
iPad Pro 12.9 (3rd Gen)
iPad Pro 12.9 (4th Gen)
iPad Pro 12.9 (5th Gen)
iPad Pro 12.9 (6th Gen)
Dell
Latitude 5285
Latitude 7320
Pixelbook
HP
Elite X2 1012 G1
Elite X2 1012 G2
Pro X2 612
Pro X2 612 G1
Lenovo
IdeaTab Lynx K3011
Miix 720
Yoga A12
Microsoft
Surface 3
Surface Book
Surface Pro (2017)
Surface Pro 3
Surface Pro 4
Surface Pro 5
Surface Pro 6
Surface Pro 7
Surface Pro 8
Surface Pro X
Samsung
Galaxy Book 12"
Galaxy Pro 12.2
Galaxy TabPro S
Galaxy Tab S8 Ultra
Galaxy Tab S10 Ultra
Galaxy Tab S10 FE Plus
Zebra
R12 XSLATE
Kit Components
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPad Pro 12.9 (1st Gen)
iPad Pro 12.9 (2nd Gen)
iPad Pro 12.9 (3rd Gen)
iPad Pro 12.9 (4th Gen)
iPad Pro 12.9 (5th Gen)
iPad Pro 12.9 (6th Gen)
Dell
Latitude 5285
Latitude 7320
Pixelbook
HP
Elite X2 1012 G1
Elite X2 1012 G2
Pro X2 612
Pro X2 612 G1
Lenovo
IdeaTab Lynx K3011
Miix 720
Yoga A12
Microsoft
Surface 3
Surface Book
Surface Pro (2017)
Surface Pro 3
Surface Pro 4
Surface Pro 5
Surface Pro 6
Surface Pro 7
Surface Pro 8
Surface Pro X
Samsung
Galaxy Book 12"
Galaxy Pro 12.2
Galaxy TabPro S
Galaxy Tab S8 Ultra
Galaxy Tab S10 Ultra
Galaxy Tab S10 FE Plus
Zebra
R12 XSLATE
Kit Components
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-101-C-UN11U!
We'll email you once the item is available.
Overview
The RAM-B-101-C-UN11U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole pattern, long double socket arm and universal X-Grip® clamping cradle for 12"-13" tablets. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 12"-13" tablets with or without sleeves, as well as some smaller tablets. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features

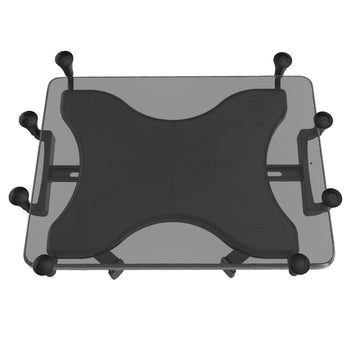

- Complete flat surface, drill-down mounting solution for the RAM® X-Grip® 12" - 13" tablet holder
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; easy access grip knobs on the back of the holder allow for the quick release of your device
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware

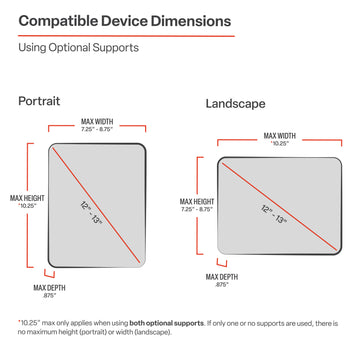

holder dimensions:

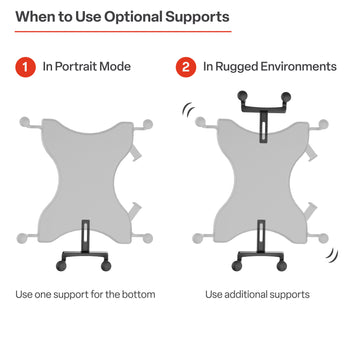

Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
socket to socket length:
5.31"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.91 lb
Additional Information:
This holder is compatible with the iPad Pro 12.9 without case only.
