RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45
Part #: RAM-B-101-225B2-ZE38-V3C-2U UPC: 793442029271 Patented & Pats. Pend. Features Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45 Back cavity accomodates OEM ergonomic accessories Made of high-strength composites for durability and reliability in the most demanding environments Backed by a 3-year warranty

Part #: RAM-B-101-225B2-ZE38-V3C-2U UPC: 793442029271 Patented & Pats. Pend.

Features

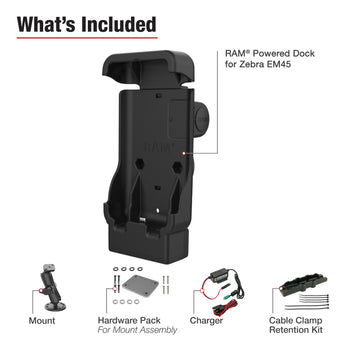

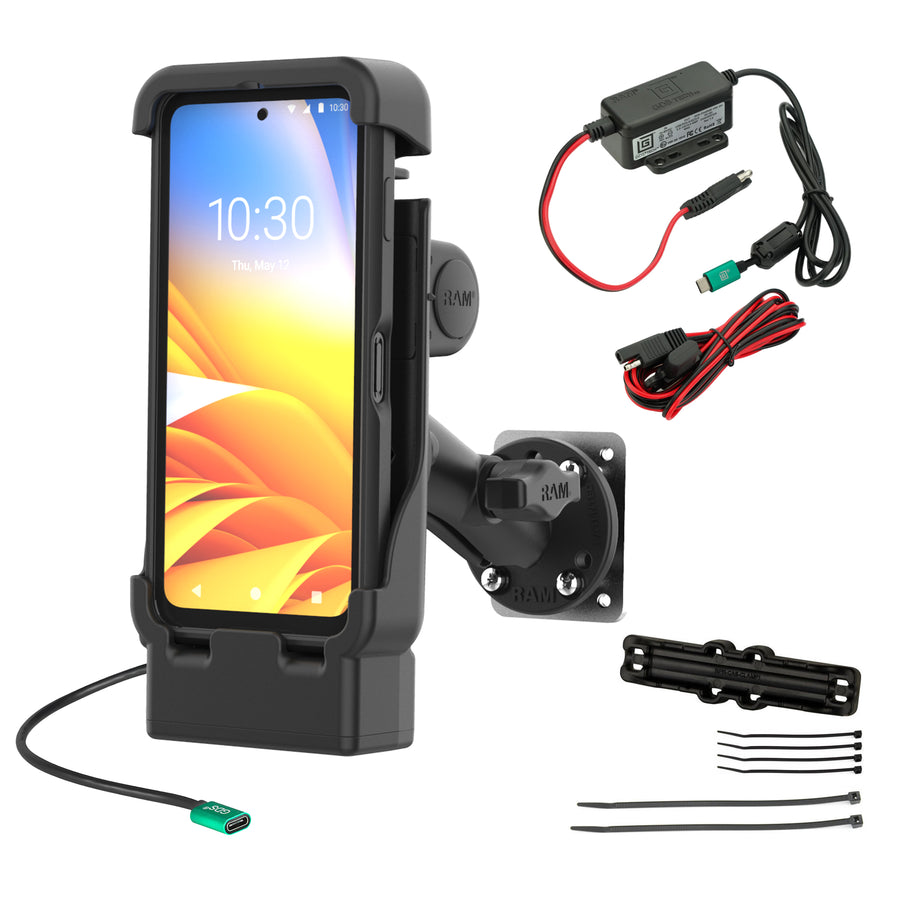

Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp
Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45
Back cavity accomodates OEM ergonomic accessories
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a 3-year warranty

RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45

Product Information

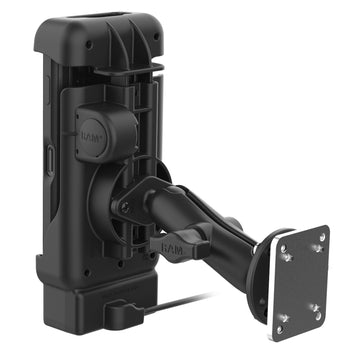

Overview	The RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM® Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM® Vehicle Dock is backed by a 3-year warranty.

Product Information

Overview

The RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM® Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM® Vehicle Dock is backed by a 3-year warranty.

Specifications
hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
input voltage	10-30VDC
output voltage	5-15VDC
output current	3A max
input cable length	1.2 Meters including 2 pole flat marine connector
operating temperature	-10°C to +70°C
storage temperature	-40°C to +70°C
regulatory	Overvoltage/Load Dump Compliance: Meets SAE J-1113
certifications	Integrated Short Circuit Protection FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45

Part#: RAM-B-101-225B2-ZE38-V3C-2U

UPC: 793442029271

$266.99

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp
Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45
Back cavity accomodates OEM ergonomic accessories
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a 3-year warranty

hardware included:

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5-15VDC

output current:

3A max

input cable length:

1.2 Meters including 2 pole flat marine connector

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Overvoltage/Load Dump Compliance: Meets SAE J-1113

certifications:

Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
