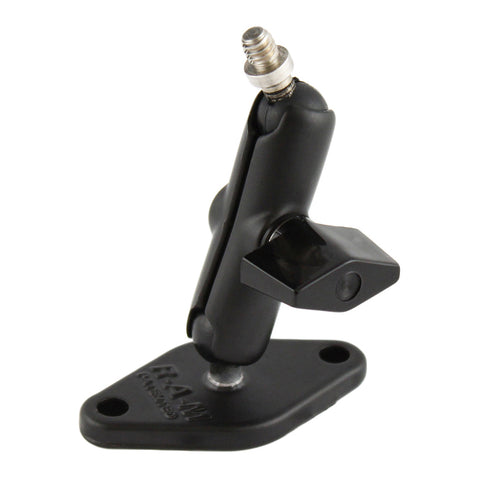

RAM® Double Ball Mount with Diamond Plate and 1/4"-20 Stud
Part #: RAM-A-101AU UPC: 793442916526

Product Information
Overview	The RAM-A-101AU consists of a double socket arm for 9/16" diameter A size balls with a 1/4"-20 threaded post and a diamond base with the 2 hole universal AMPS hole pattern.

Specifications
socket to socket length	1.67"
hole pattern	2-Hole AMPS 1.912"
ball size	A Size (9/16")
weight capacity	.5 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.15 lb

RAM® Double Ball Mount with Diamond Plate and 1/4"-20 Stud

Name: RAM® Double Ball Mount with Diamond Plate and 1/4"-20 Stud
Brand: RAM Mounts
SKU: RAM-A-101AU
Price: 51.49 USD
Availability: OutOfStock

Part#: RAM-A-101AU

UPC: 793442916526

Kit Components

RAM-A-238U:RAM-A-238U_1:RAM Diamond Ball Base - A Size

RAM® Diamond Ball Base - A Size RAM-A-238U $13.49

RAM-A-201U:RAM-A-201U_1:RAM Double Socket Arm - A Size Medium

RAM® Double Socket Arm - A Size Medium RAM-A-201U $17.49

RAM-A-237U:RAM-A-237U_1:RAM Ball Adapter with 1/4"-20 Threaded Post - A Size

RAM® Ball Adapter with 1/4"-20 Threaded Post - A Size RAM-A-237U $24.49

$51.49

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
