RAM® Ball Adapter with 3/8”-24 Threaded Hole

rammount.com
1-800-497-7479
sales@rammount.com

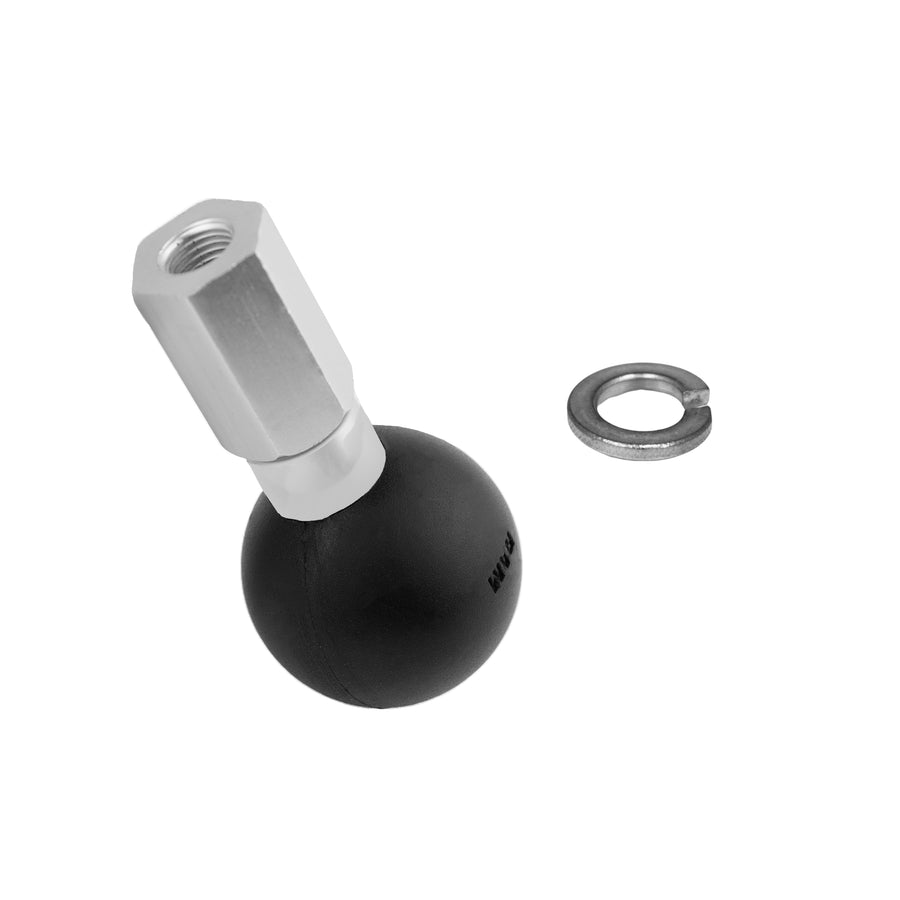

RAM® Ball Adapter with 3/8”-24 Threaded Hole
Part #: RAM-451U UPC: 793442018299 Features weBoost adapter features a C size ball with a 3/8"-24 x .625" threaded hole and lock washer Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Made of marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-451U UPC: 793442018299

Features

weBoost adapter features a C size ball with a 3/8"-24 x .625" threaded hole and lock washer
Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Ball Adapter with 3/8”-24 Threaded Hole

Product Information
Overview	The RAM® Ball Adapter with 3/8”-24 Threaded Hole (RAM-451U) is a C size 1.5" diameter ball with a 3/8"-24 x .625" threaded hole for a secure connection to the weBoost antenna. The ball is compatible with all RAM® C Size ball & socket components, allowing you to secure your weBoost antenna in virtually any location.

Specifications
hardware included	(1) Lock Washers
thread pitch	3/8"-24
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.18 lb

Questions about our products? Email us for support.

RAM® Ball Adapter with 3/8”-24 Threaded Hole

Part#: RAM-451U

UPC: 793442018299

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$14.49

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

The RAM® Ball Adapter with 3/8”-24 Threaded Hole (RAM-451U) is a C size 1.5" diameter ball with a 3/8"-24 x .625" threaded hole for a secure connection to the weBoost antenna. The ball is compatible with all RAM® C Size ball & socket components, allowing you to secure your weBoost antenna in virtually any location.

Features

weBoost adapter features a C size ball with a 3/8"-24 x .625" threaded hole and lock washer
Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty
