RAM® Pod HD™ 24" Reverse Vehicle Mount - GM Hardware
Part #: RAM-316-HDR-202-GMU UPC: 793442006555 Patented

Product Information

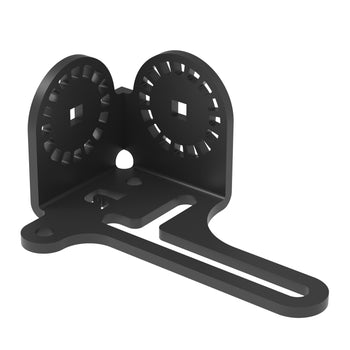

Overview	Blending the best of versatility, strength and installation ease; the RAM POD HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM POD HD™ is an ideal solution for mounting tablets, small laptops and other similar devices. Requiring minimal space in the vehicle cab, it can be remove quickly without the use of tools. The versatility of the RAM POD HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet. This is the reverse configuration version which means the footing is better suited for right hand drive vehicles.

Product Information

Overview

Blending the best of versatility, strength and installation ease; the RAM POD HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM POD HD™ is an ideal solution for mounting tablets, small laptops and other similar devices. Requiring minimal space in the vehicle cab, it can be remove quickly without the use of tools. The versatility of the RAM POD HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet. This is the reverse configuration version which means the footing is better suited for right hand drive vehicles.

Specifications

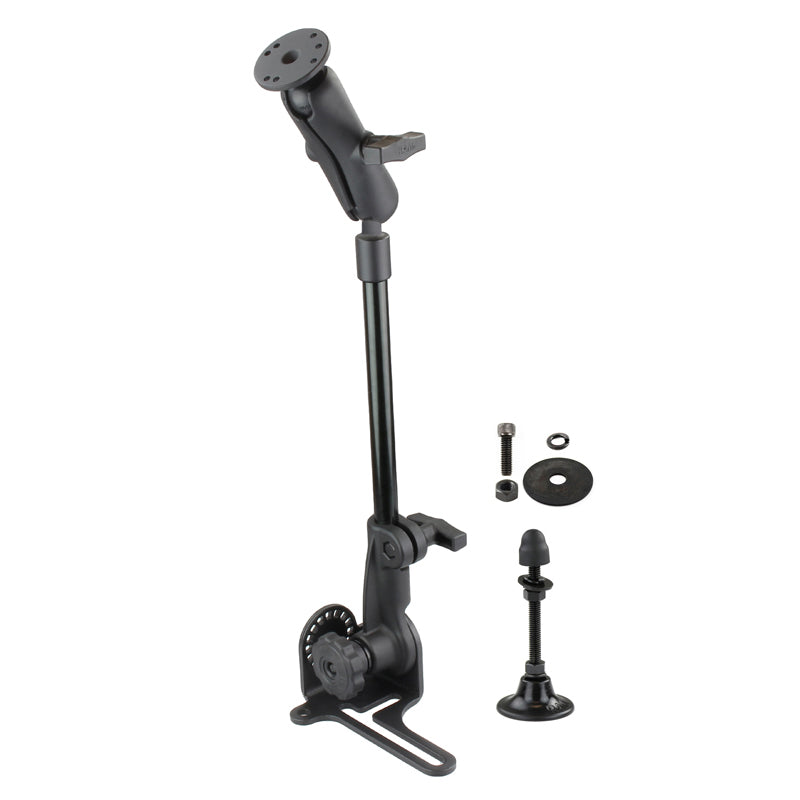

hardware included	Assembly Hardware (1) 5/16"-18 x 1" Socket Cap Screw (1) 5/16" Fender Washer (1) 5/16" Split Lock Washer (1) 5/16"-18 Steel Nut Stabilizer Foot
product dimensions	Height Range: 18.75" - 25.75"

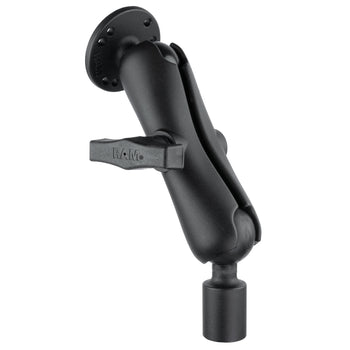

socket to socket length	4.66"

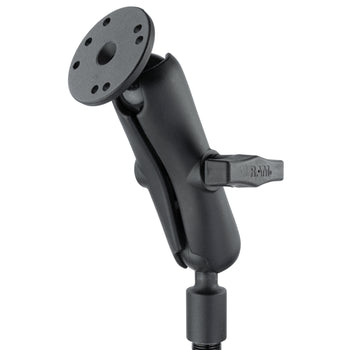

hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter See Drawing
plate size	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Poly Bag
Weight	4.29 lb

RAM® Pod™ HD Reverse Vehicle Mount with 12" Pipe - GM Hardware

Questions about our products? Email us for support.

Patented

RAM® Pod HD™ 24" Reverse Vehicle Mount - GM Hardware

Part#: RAM-316-HDR-202-GMU

UPC: 793442006555

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
