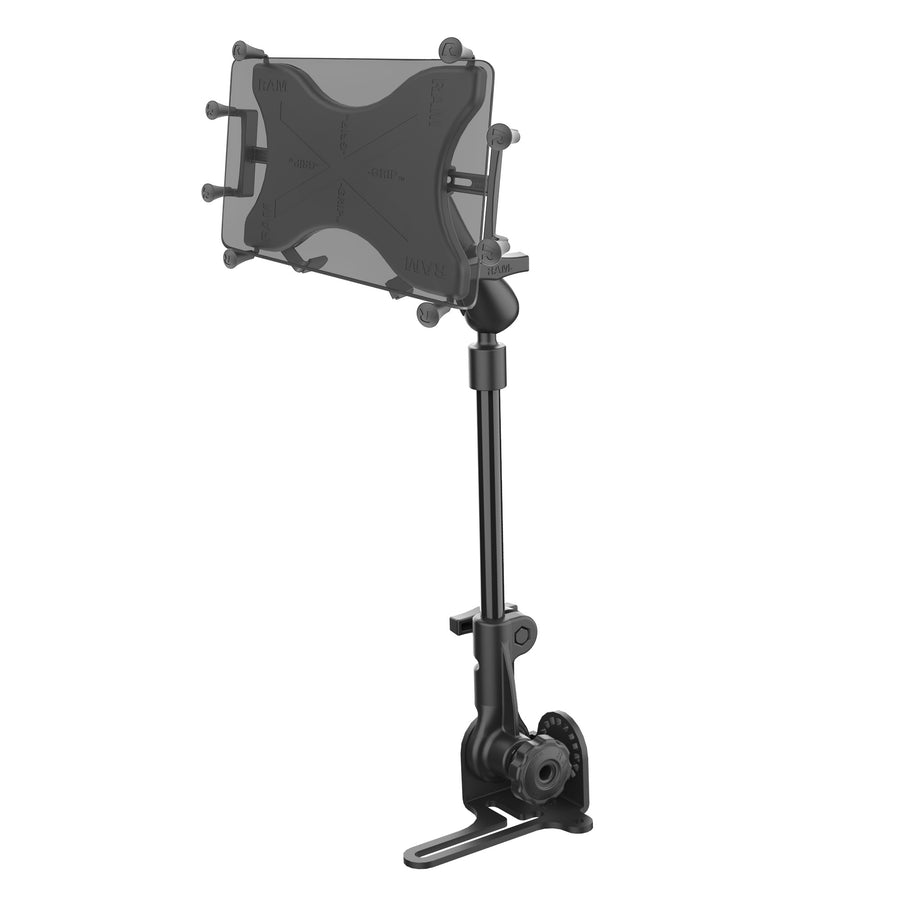

| RAM® Pod HD™ 24" Vehicle Mount with RAM® X-Grip® for 9"-11" Tablets | |
|---|---|
|
Part #:
RAM-316-HD-UN9U
UPC:
793442025747
Patented
Features
|
|
| Product Information | |
|---|---|

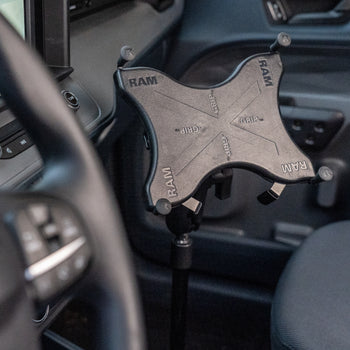

| Overview | The RAM® Pod HD™ 24" Vehicle Mount with RAM® X-Grip® for 9"-11" Tablets (RAM-316-HD-UN9U) features the RAM® X-Grip® Universal Holder for 9"-11" Tablets and the RAM® Pod HD™ Vehicle Mount with 24" Aluminum Rod. The RAM® X-Grip® Universal Holder for 9"-11" tablets features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Easy-to-access grip knobs located on the back of the holder enable quick release of your tablet and the RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle. The included RAM® Pod HD™ Vehicle Mount with 24" Aluminum Rod blends the best of versatility, strength, and installation ease; the RAM® Pod HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM® Pod HD™ is an ideal solution for mounting tablets. Requiring minimal space in the vehicle cab, the pipe can be removed quickly without the use of tools. The versatility of the RAM® Pod HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types, and other applications which require a robust mounting platform for your tablet. |
| Specifications | |
|---|---|
| hardware included | Assembly Hardware Stabilizer Foot |
| product dimensions | Height Range: 18.75" - 25.75" Pipe Diameter: .84" OD |
| holder dimensions | Max Height: 10.25" (using optional supports) Width Range: 6.25" - 8.1" Max Depth: .875" |
| socket to socket length | 4.66" |
| hole pattern | See Drawing |
| plate size | See Drawing |
| ball size | C Size (1.5") |
| weight capacity | Standard Use: 4 lbs Heavy-Duty Use: 3 lbs |
| materials | Powder coated steel Marine-grade aluminum High strength composite |
| packaging type | Poly Bag |
| Weight | 6.16 lb |
Patented
C Size
Medium Arm
Google
RAM® Pod HD™ 24" Vehicle Mount with RAM® X-Grip® for 9"-11" Tablets
Part#:
RAM-316-HD-UN9U
UPC:
793442025747
C Size
Medium Arm
Size Guide
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
A Size
Holds .5 lbs.
Trail Cameras
B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs.
Heavy Monitors
E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
| Size | A Size | B Size | C Size | D Size | E Size |
|---|---|---|---|---|---|
| Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
| Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
| Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
| Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
| Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
| Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Amazon
Fire HD 10
Apple
iPad (1st Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad (5th Generation)
iPad (6th Generation)
iPad (7th Generation)
iPad (8th Generation)
iPad (9th Generation)
iPad (10th Generation)
iPad 2
iPad 9.7 (2017)
iPad 9.7 (2018)
iPad Air
iPad Air 2
iPad Air 3
iPad Air 4
iPad Air 5
iPad Pro 9.7 (1st Generation)
iPad Pro 10.5 (2nd Generation)
Apple
iPad Pro 11"
iPad Pro 11" (2020)
iPad Pro 11" (2021)
iPad Pro 11" (2022)
ASUS
MeMO Pad FHD 10
Transformer Pad
ZenPad 10
ZenPad 3S 10
ZenPad Z10
Dell
Venue 10 7000
Venue 11 Pro
Venue 11 Pro 7000
Nexus 10
Pixel C
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Pro Slate 10.1
Huawei
MediaPad M2 10.0
MediaPad M3 Lite 10.0
Huawei
MediaPad T3 10
Lenovo
Miix 3
Tab K11
Tab P12 Pro
S6000
Tab 2 A10-70
Tab 4 10
Tab 4 10 Plus
Tab A10
Tab3 10 Business
ThinkPad 10
ThinkPad Tablet 2
Yoga Book
Yoga Tab 3 10
Yoga Tab 3 Pro
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
LG
G Pad 10.1
G Pad II 10.1
LG
G Pad X 10.1
G Pad X II 10.1
Microsoft
Surface 2
Surface Pro
Surface Pro 2
Surface Go
Surface Go 2
Nokia
T21
Samsung
Galaxy Book 10.6
Galaxy Tab 10.1
Galaxy Tab 2 10.1
Galaxy Tab 3 10.1
Galaxy Tab 4 10.1
Galaxy Tab A 9.7
Galaxy Tab A 10.5
Galaxy Tab A8 10.5
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
Galaxy Tab Pro 10.1
Galaxy Tab S 10.5
Samsung
Galaxy Tab S2 9.7
Galaxy Tab S3 9.7
Galaxy Tab S4 10.5
Galaxy Tab S5e
Galaxy Tab S6
Galaxy Tab S7
Galaxy Tab S7 FE
Galaxy Tab S7 Plus
Galaxy Tab S8
Galaxy Tab S8 Plus
Galaxy Tab S9
Galaxy Tab S9 FE
Galaxy Tab S9 FE Plus
Galaxy Tab S9 Plus
Galaxy Tab S10 Plus
Social
Mobile Rhino T100
Sony
Vaio Tap 11
Xperia Tablet S
Xperia Tablet Z
Vankyo
MatrixPad Z4 10"
$306.49
C Size
Medium Arm
Size Guide
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
A Size
Holds .5 lbs.
Trail Cameras
B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs.
Heavy Monitors
E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
| Size | A Size | B Size | C Size | D Size | E Size |
|---|---|---|---|---|---|
| Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
| Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
| Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
| Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
| Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
| Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Amazon
Fire HD 10
Apple
iPad (1st Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad (5th Generation)
iPad (6th Generation)
iPad (7th Generation)
iPad (8th Generation)
iPad (9th Generation)
iPad (10th Generation)
iPad 2
iPad 9.7 (2017)
iPad 9.7 (2018)
iPad Air
iPad Air 2
iPad Air 3
iPad Air 4
iPad Air 5
iPad Pro 9.7 (1st Generation)
iPad Pro 10.5 (2nd Generation)
Apple
iPad Pro 11"
iPad Pro 11" (2020)
iPad Pro 11" (2021)
iPad Pro 11" (2022)
ASUS
MeMO Pad FHD 10
Transformer Pad
ZenPad 10
ZenPad 3S 10
ZenPad Z10
Dell
Venue 10 7000
Venue 11 Pro
Venue 11 Pro 7000
Nexus 10
Pixel C
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Pro Slate 10.1
Huawei
MediaPad M2 10.0
MediaPad M3 Lite 10.0
Huawei
MediaPad T3 10
Lenovo
Miix 3
Tab K11
Tab P12 Pro
S6000
Tab 2 A10-70
Tab 4 10
Tab 4 10 Plus
Tab A10
Tab3 10 Business
ThinkPad 10
ThinkPad Tablet 2
Yoga Book
Yoga Tab 3 10
Yoga Tab 3 Pro
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
LG
G Pad 10.1
G Pad II 10.1
LG
G Pad X 10.1
G Pad X II 10.1
Microsoft
Surface 2
Surface Pro
Surface Pro 2
Surface Go
Surface Go 2
Nokia
T21
Samsung
Galaxy Book 10.6
Galaxy Tab 10.1
Galaxy Tab 2 10.1
Galaxy Tab 3 10.1
Galaxy Tab 4 10.1
Galaxy Tab A 9.7
Galaxy Tab A 10.5
Galaxy Tab A8 10.5
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
Galaxy Tab Pro 10.1
Galaxy Tab S 10.5
Samsung
Galaxy Tab S2 9.7
Galaxy Tab S3 9.7
Galaxy Tab S4 10.5
Galaxy Tab S5e
Galaxy Tab S6
Galaxy Tab S7
Galaxy Tab S7 FE
Galaxy Tab S7 Plus
Galaxy Tab S8
Galaxy Tab S8 Plus
Galaxy Tab S9
Galaxy Tab S9 FE
Galaxy Tab S9 FE Plus
Galaxy Tab S9 Plus
Galaxy Tab S10 Plus
Social
Mobile Rhino T100
Sony
Vaio Tap 11
Xperia Tablet S
Xperia Tablet Z
Vankyo
MatrixPad Z4 10"
Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-316-HD-UN9U!
We'll email you once the item is available.
RAM® Pod HD™ 24" Vehicle Mount with RAM® X-Grip® for 9"-11" Tablets
ram-316-hd-un9u
Overview
The RAM® Pod HD™ 24" Vehicle Mount with RAM® X-Grip® for 9"-11" Tablets (RAM-316-HD-UN9U) features the RAM® X-Grip® Universal Holder for 9"-11" Tablets and the RAM® Pod HD™ Vehicle Mount with 24" Aluminum Rod. The RAM® X-Grip® Universal Holder for 9"-11" tablets features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Easy-to-access grip knobs located on the back of the holder enable quick release of your tablet and the RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle. The included RAM® Pod HD™ Vehicle Mount with 24" Aluminum Rod blends the best of versatility, strength, and installation ease; the RAM® Pod HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM® Pod HD™ is an ideal solution for mounting tablets. Requiring minimal space in the vehicle cab, the pipe can be removed quickly without the use of tools. The versatility of the RAM® Pod HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types, and other applications which require a robust mounting platform for your tablet.
Features

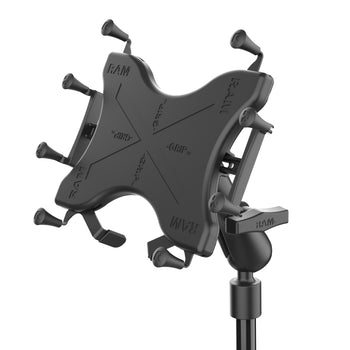

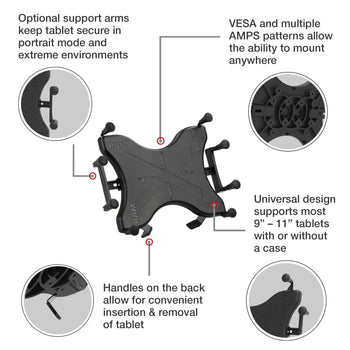

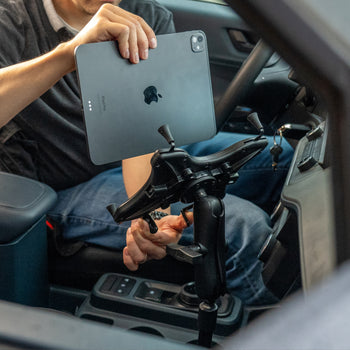

- Spring-loaded 'X' design with rubber caps sports great holding power without obstructing your tablet; fits most 9" - 11" tablets

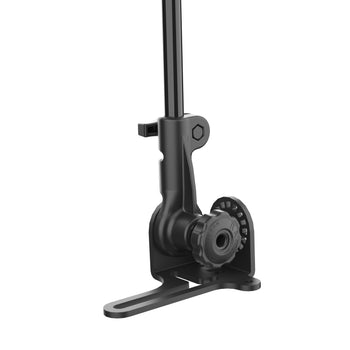

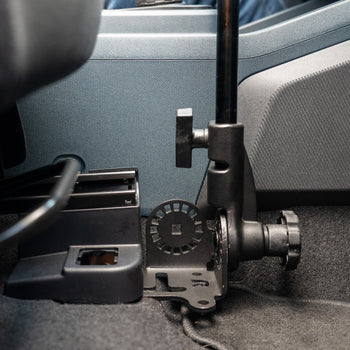

- Universal vehicle mount attaches to seat rail without any drilling necessary; ideal for tablets and small laptops
- Round plate features C size 1.5" RAM® rubber ball and industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
- Made of high-strength composite and steel components for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
Stabilizer Foot
product dimensions:
Height Range: 18.75" - 25.75"
Pipe Diameter: .84" OD

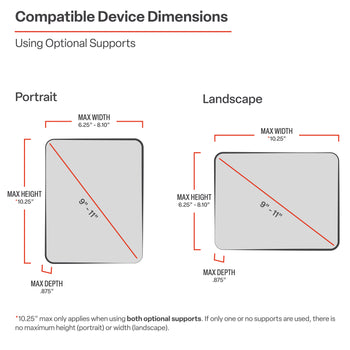

holder dimensions:

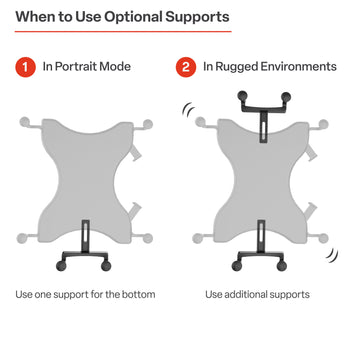

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
socket to socket length:
4.66"
hole pattern:
See Drawing
plate size:
See Drawing
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Powder coated steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
6.16 lb
