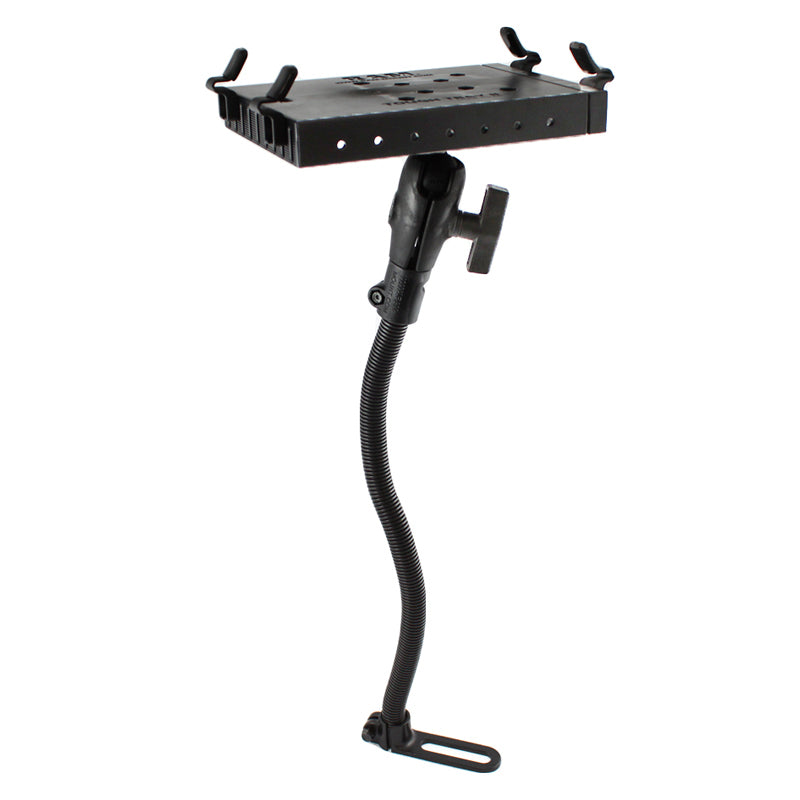

RAM® Tough-Tray™ II Holder with RAM® Pod™ I Vehicle Mount - C Size
Part #: RAM-316-1-234-6U UPC: 793442921933 Patented

Product Information
Overview	This kit includes the RAM-234-6 with the RAM POD I with a 1.5" diameter ball and socket. This universal vehicle mounting base quickly and easily installs into a variety of vehicles and other applications. The RAM-POD I has a maximum extension of 18" but can be cut to desired length. The black steel foot can be attached to the inside seat rail bolt of the passenger or any existing bolt.

Specifications
hardware included	Assembly Hardware
tray dimensions	Width Range: 8.56" - 11.2" Side Arm Clamp Height: 2.75" max Tray Depth: 6" Tray Thickness: 1"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	3.82 lb

RAM® Tough-Tray™ II Holder with RAM® Pod™ I Vehicle Mount - C Size

Questions about our products? Email us for support.

Patented

RAM® Tough-Tray™ II Holder with RAM® Pod™ I Vehicle Mount - C Size

Part#: RAM-316-1-234-6U

UPC: 793442921933

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$116.49
