Overview

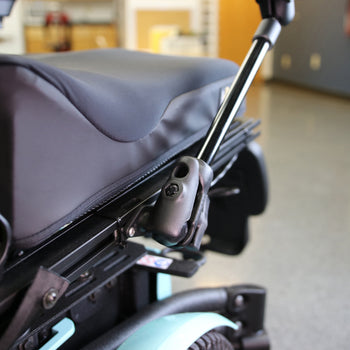

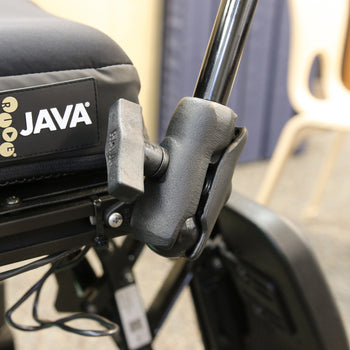

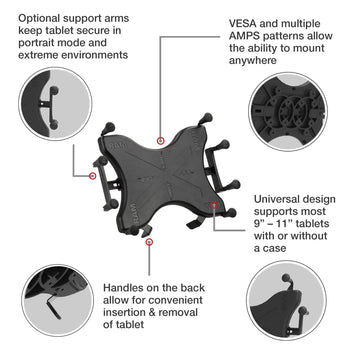

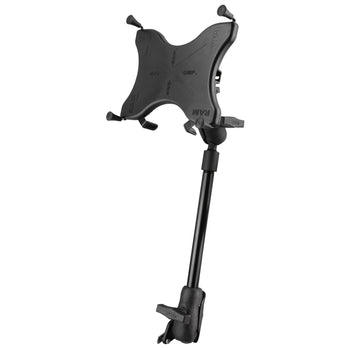

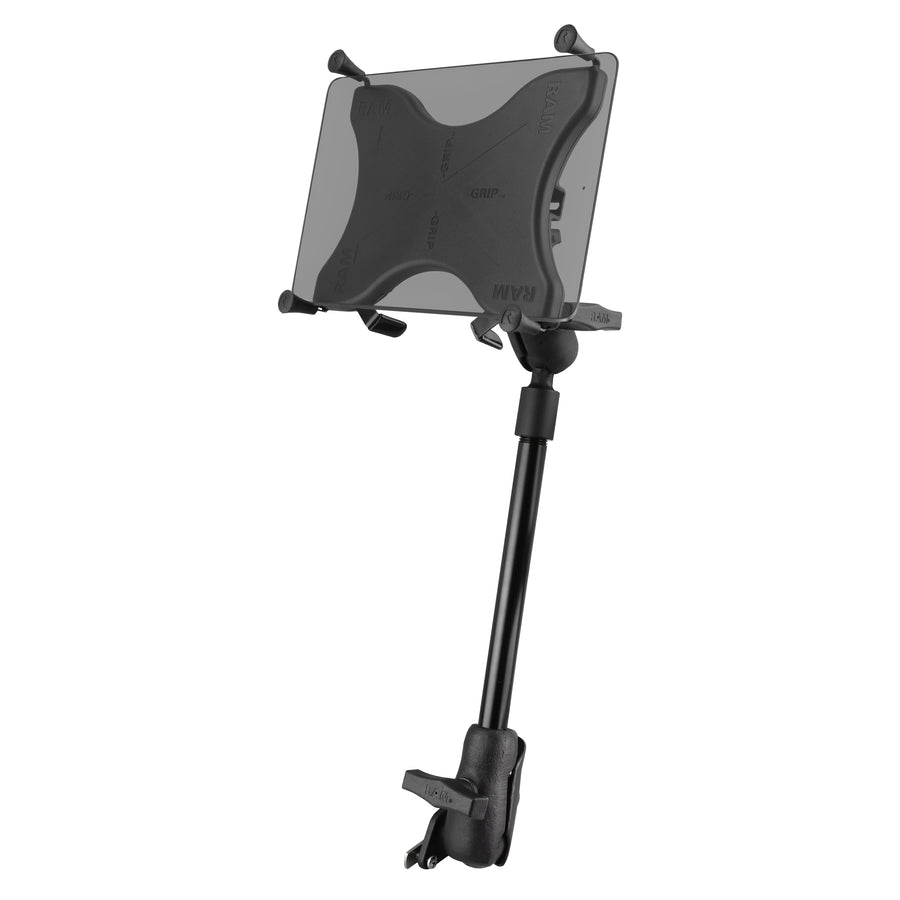

This kit includes a C size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, pipe extension, and double socket arm, connect the RAM® X-Grip® universal holder for 9”-11” tablets. The spring-loaded RAM® X-Grip® provides a perfect fit for your tablet and can be easily adjusted to the ideal position.
hardware included:
Assembly Hardware
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts

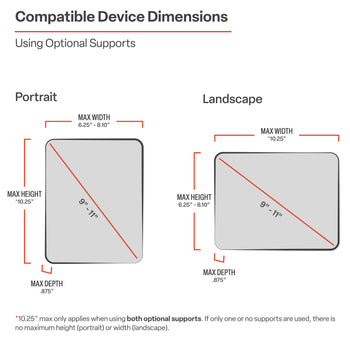

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
t bolt dimensions:
Large: .48" x .95"
Small: .375" x .593"
hole pattern:
2-Hole AMPS 1.912"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
packaging type:
Retail Bag
Weight:
2.81 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?

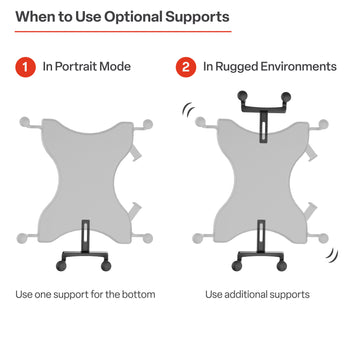

In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
This part says it has a maximum height of 10.25" (using optional supports). Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
