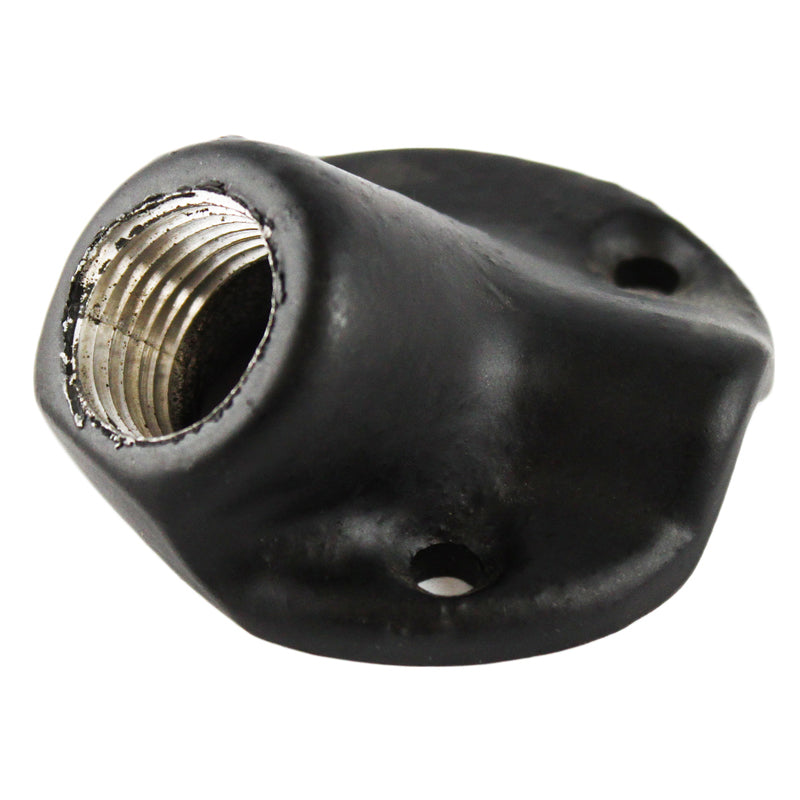

RAM® 45-Degree 1/2" NPT Threaded Hole with Round Base
Part#: RAM-232-45U
UPC: 793442023224
$26.99

Overview

The RAM-232-45U consists of a 2.5" diameter base with 1/2" NPT female thread at a 45 degree angle to the base. This part connects to any 1/2" NPT male thread, including the RAM-PA82XX rigid arm series.

Features

  • 2.5" diameter base with 1/2" NPT female thread connects to any 1/2" NPT male threaded post or attachment at a 45-degree angle
  • Base has shallow tunnel opening for threading cables through
  • Compatible with RAM® 1/2" NPT Male Threaded Pipes
  • 3-hole 120-degre mounting pattern for drill-down mounting
  • Backed by a lifetime warranty

hole pattern:

3-Hole 120-Degree: 1.812" Diameter

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.16 lb
