C Size
Long Arm

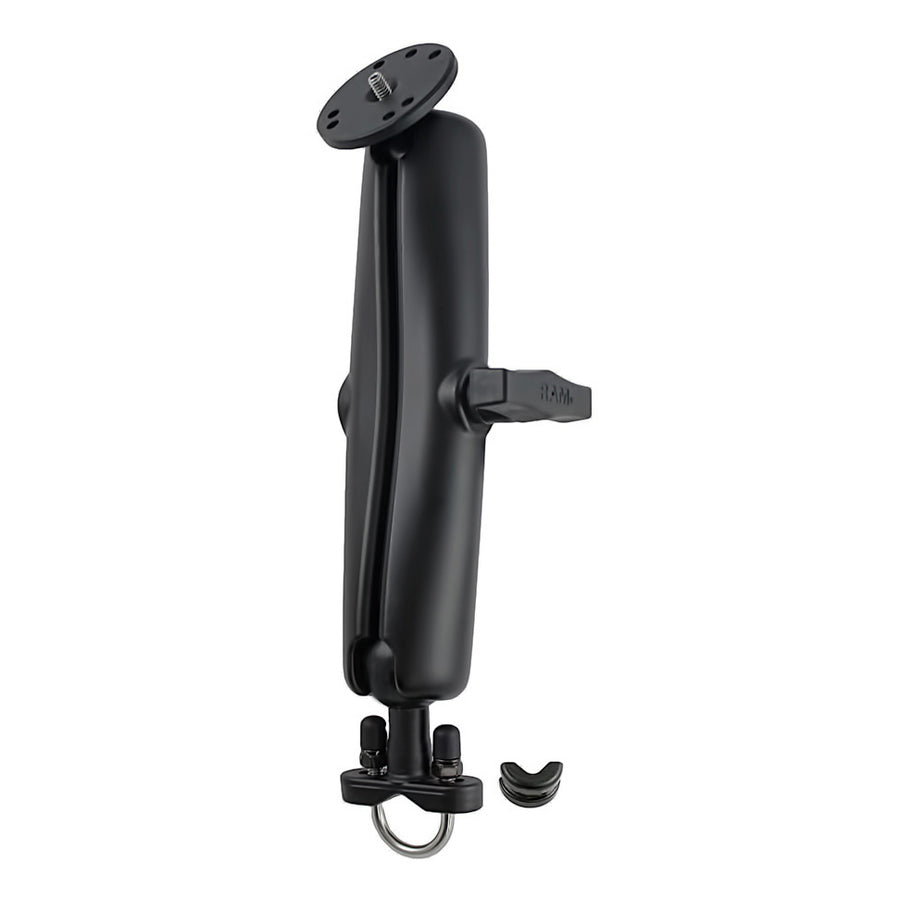

RAM® U-Bolt Double Ball Mount with 1/4"-20 Threaded Stud - C Size Long


$96.49
Overview
The RAM-231-D-202AU consists of a U bolt base for rails between .5" and 1" in diameter, a long length C-size double socket arm, and a 2.5" round plate with universal AMPS hole pattern and a removeable 1/4"-20 threaded post in the center.
hardware included:
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range:
.5" - 1" diameter
socket to socket length:
8"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
2.11 lb
