RAM® Triple Magnetic Ball Base
Part #: RAM-202-339U UPC: 793442941948

Product Information

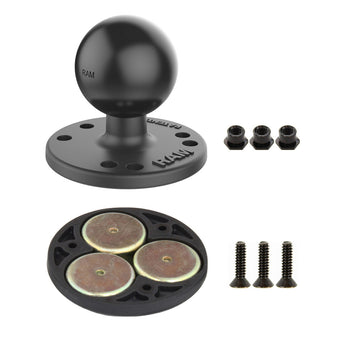

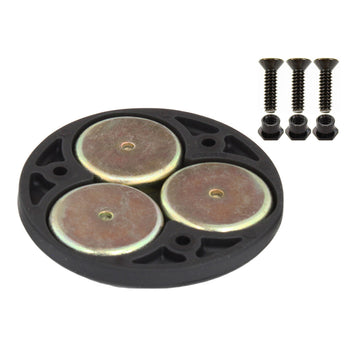

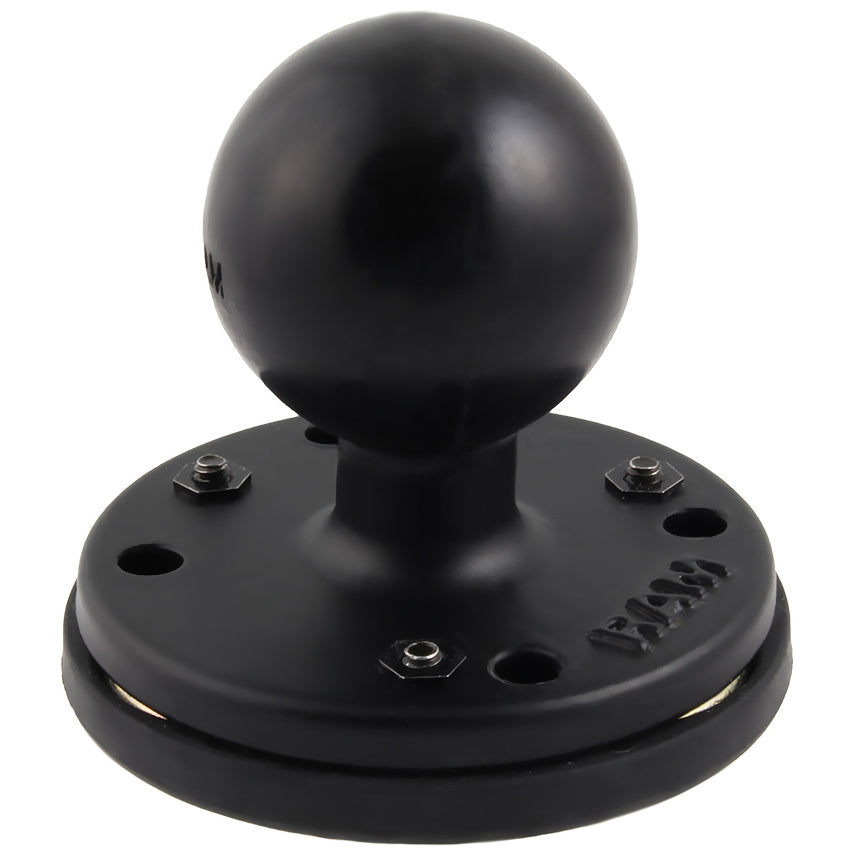

Overview	The RAM-202-339U consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base and triple magnetic base adapter. The 2.5" diameter base contains pre-drilled holes, including the universal AMPS hole pattern. The magnetic base adapter contains 3 rare earth magnets that hold firm to ferrous metals. Simply put this product near the mounting surface and feel it almost jump out of your hand. The composite adapter designed to conceal the magnets is made of durable composite to prevent scratching the mounting surface. Ideally suited for many applications, you're sure to find many ways to use your new magnetic mount at work, home, on the go, or at play.

Product Information

Overview

The RAM-202-339U consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base and triple magnetic base adapter. The 2.5" diameter base contains pre-drilled holes, including the universal AMPS hole pattern. The magnetic base adapter contains 3 rare earth magnets that hold firm to ferrous metals. Simply put this product near the mounting surface and feel it almost jump out of your hand. The composite adapter designed to conceal the magnets is made of durable composite to prevent scratching the mounting surface. Ideally suited for many applications, you're sure to find many ways to use your new magnetic mount at work, home, on the go, or at play.

Specifications
hardware included	Assembly Hardware
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum Rubber
packaging type	Poly Bag
Weight	0.71 lb

Questions about our products? Email us for support.

RAM® Triple Magnetic Ball Base

Part#: RAM-202-339U

UPC: 793442941948

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
