Patent Pending

RAM® Push-to-Talk Kit for Siyata SD7 with Cigarette Charger

Part#: RAM-138-SYT1CP-CIGU
UPC: 793442031113

Compatibility

Siyata

SD7

Kit Components

Previous Slide Next Slide
$261.49

Overview

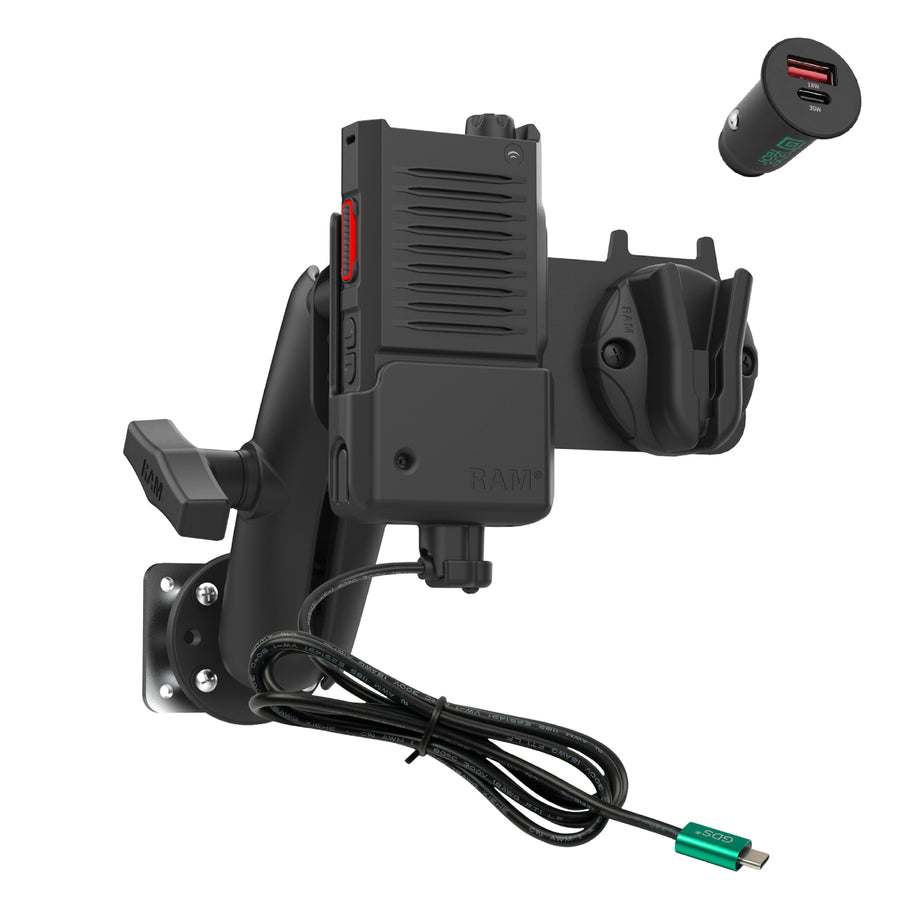

The RAM® Push-to-Talk Kit for Siyata SD7 with Cigarette Charger (RAM-138-SYT1CP-CIGU) is an all-in-one mounting and charging solution designed for the Siyata SD7. The included RAM® Form-Fit USB-C Powered Dock features a precision-engineered cradle that guides the device onto the USB-C male connector for reliable docking while helping reduce port damage and user error. Side cutouts provide full access to ports and buttons, including the SOS button, while the device remains securely cradled. This complete kit includes the RAM® Form-Fit USB-C Powered Dock, microphone bracket, microphone clip, double ball mount with backing plate, and GDS® Cigarette Charger. The dedicated microphone clip provides a convenient mounting point for the Siyata SD7 wired palm microphone, while the integrated RAM® mounting components provide a secure and versatile solution for vehicle installations. This kit is compatible with the Siyata VK7 speaker mic.

Features

  • All-in-one mounting kit for the Siyata SD7; includes cigarette charger
  • Powered RAM® Form-Fit dock for the Siyata SD7 provides charging through direct USB-C connection

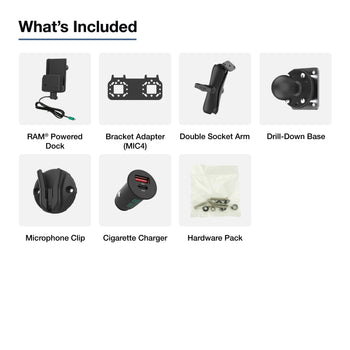

  • Kit includes the RAM® Form-Fit USB-C Powered Dock, microphone bracket, microphone clip, double ball mount with backing plate, and GDS® Cigarette Charger
  • Microphone clip compatible with the Siyata SD7 Wired Palm Mic
  • Backed by a 3-year warranty

hardware included:

Assembly Hardware
(1) Cig Charger

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496

plate size:

2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite
Powder coated steel

packaging type:

Poly Bag

Warranty:

3 year warranty

Weight:

2.05 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Assembly Instructions for Siyata SD7 Vehicle Bundle
Q&A
Questions & Answers loading...

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
