RAM® Vertical 12" Swing Arm Mount with Swivel Socket Arm
Part #: RAM-109VS-5NBU UPC: 793442924835 Patented

Product Information

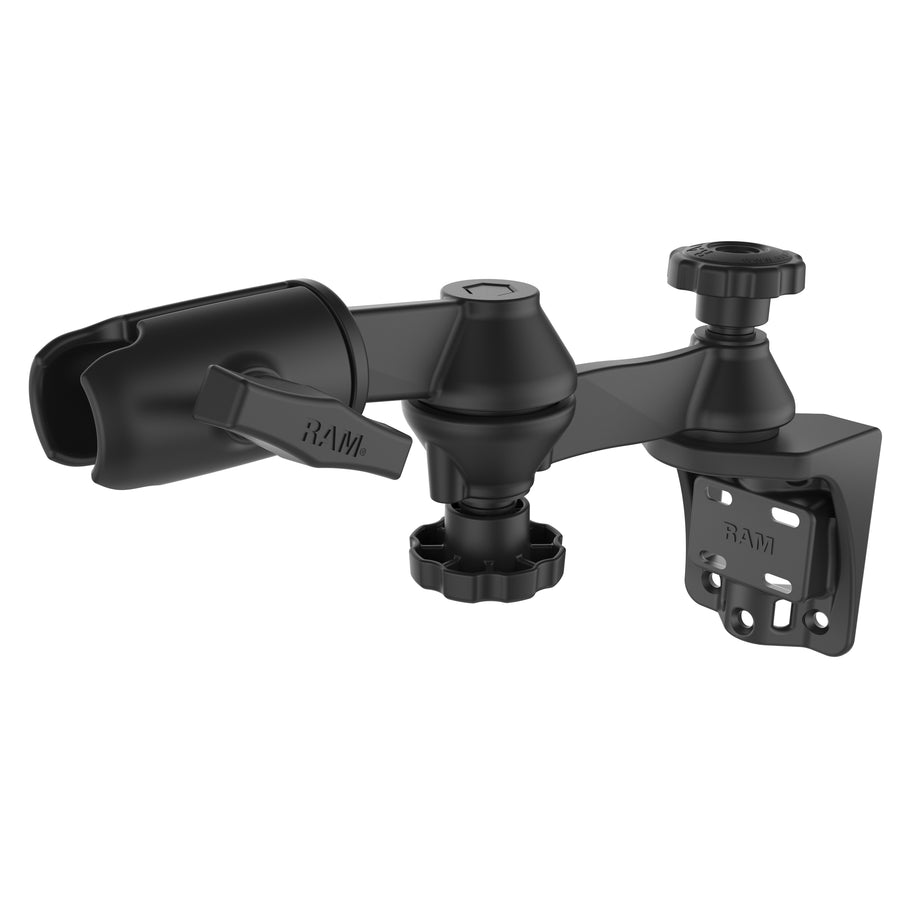

Overview	The RAM-109VS-5NBU consists of two 6" straight swing arms with a drill-down base for vertical surfaces as well as a socket for C size balls.

Specifications
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	3.62 lb

RAM® Vertical 12" Swing Arm Mount with Swivel Socket Arm

RAM® Vertical 12" Swing Arm Mount with Swivel Socket Arm

RAM® Vertical 12" Swing Arm Mount with Swivel Socket Arm

RAM® Vertical 12" Swing Arm Mount with Swivel Socket Arm

Questions about our products? Email us for support.

Patented

RAM® Vertical 12" Swing Arm Mount with Swivel Socket Arm

Part#: RAM-109VS-5NBU

UPC: 793442924835

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
