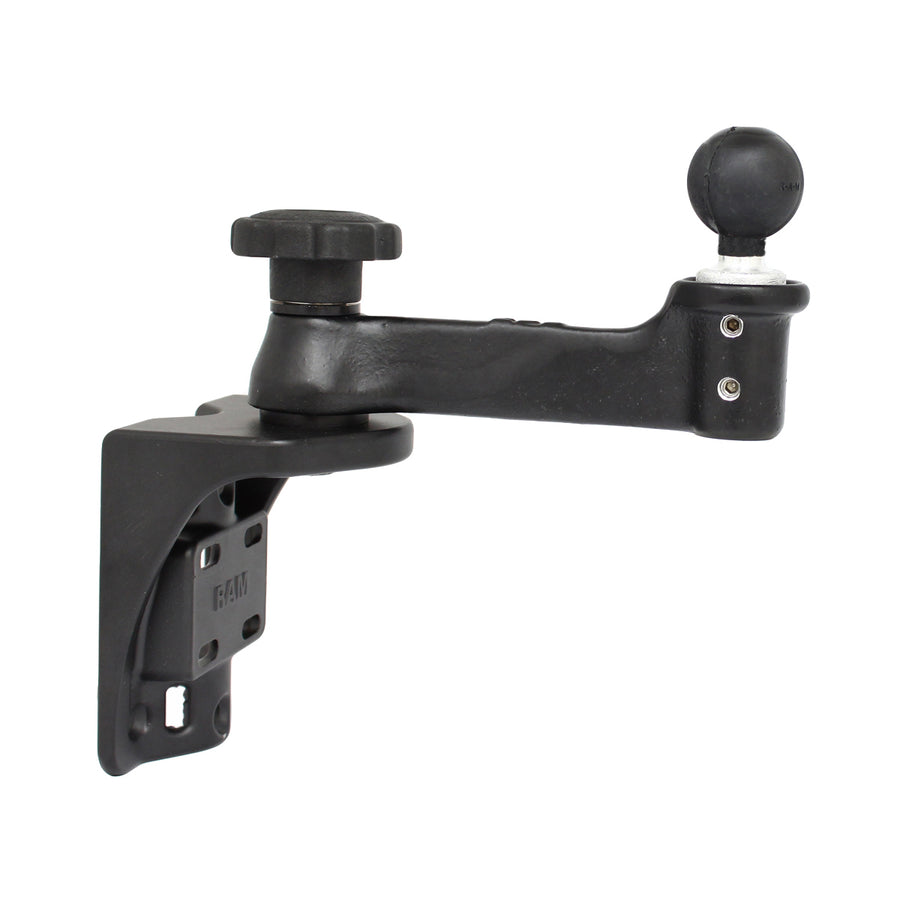

RAM® Vertical 6" Swing Arm Mount with Ball
Part #: RAM-109V-2BU UPC: 793442913273

Product Information
Overview	The RAM-109V-2BU consists of a 6" long straight swing arm mounted on a vertical surface mounting base. At the free end of the mount swing arm is a round 1.5" diameter ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.

Product Information

Overview

The RAM-109V-2BU consists of a 6" long straight swing arm mounted on a vertical surface mounting base. At the free end of the mount swing arm is a round 1.5" diameter ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.

Specifications
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.2 lb
