Overview

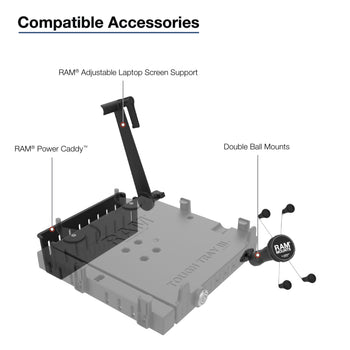

The RAM® Tough-Tray™ III Laptop Holder with Vertical Swing Arm Mount (RAM-109V-234-7U) combines a drill-down base designed for vertical surfaces, two straight swing arms, and the RAM® Tough-Tray™ Spring-Loaded Laptop Holder to create a versatile mounting solution for in-vehicle laptop use. The dual swing arms provide flexible positioning and adjustable reach, while the spring-loaded tray securely accommodates a wide range of laptop sizes. The RAM® Tough-Tray™ accommodates laptops ranging from 10” to 17” (measured diagonally) and features four adjustable retaining arms with rubber grips. The arms adjust vertically and horizontally to provide a custom fit for laptops of varying thicknesses while keeping ports and drives accessible. Compatible accessories, including a screen support and USB light, are also available to further customize your mounting setup.
Features
- Drill-down base installs to vertical surfaces for versatile in-vehicle laptop mounting
- Dual articulating swing arm provides a high-level of adjustability
- Universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty

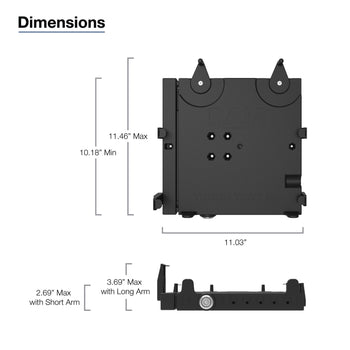

tray dimensions:
Width Range: 10" - 15.25"
Side Arm Clamp Height: 0" - 1.875"
Depth Range: 7.625" - 10.625"
Tray Thickness: 1.26"
hole pattern:
See Drawing
plate size:
3.97" x 4.85"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
7.28 lb
