RAM® Horizontal 6" Swing Arm Mount with Fixed Socket Arm
Part #: RAM-109H-4U UPC: 793442903885

Product Information

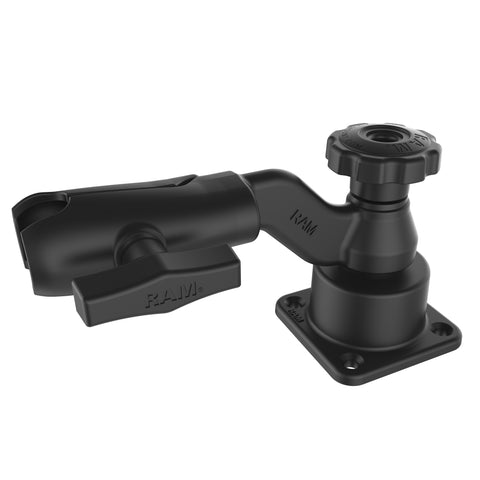

Overview	This kit contains a drill-down horizontal base, a 6 inch swing arm with an open end that will accommodate any of our 1.5 inch ball bases like RAM-202U or RAM-111BU.

Specifications
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.67 lb
